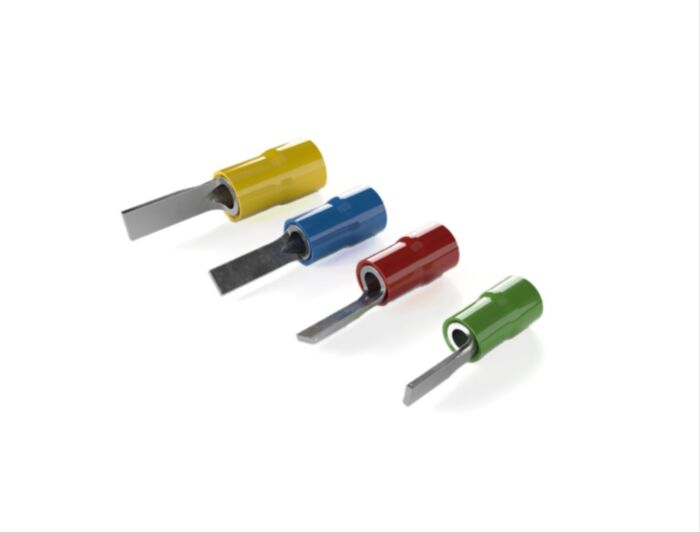

2046455 Cembre BP-PP16/25 BLADE TERMINAL
MPN: 2046455
Alt. SKU: BP-PP16/25
Special Price
£0.1464
£0.1220
Regular Price
£0.1830
2046455 Cembre BP-PP16/25 BLADE TERMINAL is available to buy in increments of 100
The BP-PP16/25 Blue Blade Terminal is a high-quality, reliable solution for secure electrical connections in a variety of industrial applications. Designed for professional electricians, panel builders, and maintenance engineers, this terminal offers superior performance and adherence to industry standards.
Why Choose the BP-PP16/25 Blue Blade Terminal?
This blade terminal provides a robust and dependable connection, ensuring long-lasting performance even in demanding environments. Its compliance with UL 486A-486B guarantees safety and reliability, while the easy insertion input simplifies installation, saving you valuable time and effort.
Key Features
- UL 486A-486B compliant for assured safety
- Easy insertion input for quick and efficient installation
- Electrolytic copper conductor with tin plating for superior conductivity and corrosion resistance
- Polycarbonate PC10500AC insulated cover for excellent durability and protection
- Halogen-free construction for enhanced safety
- Suitable for cable cross-sections of 1.5 ÷ 2.5 mm2
- Blue insulated cover for easy identification
- Operating temperature range: -20°C to 115°C (130°C short periods)
Technical Specifications
- Part Number: 2046455
- Cat Number: BP-PP16/25
- Minimum Operating Temperature: -20°C
- Maximum Operating Temperature: 115°C
- Short-Term Operating Temperature: 130°C
- Conductor Material: Electrolytic copper (99.95% purity)
- Surface Treatment: Tin plating (min. 3µm)
- Insulation Material: Polycarbonate PC10500AC
- Flammability Rating: UL 94 V0
- Halogen-Free: Yes
- Cable Cross Section: 1.5 ÷ 2.5 mm2
- Customs Code: 85369010
- ETIM Class: EC001052
Applications
- Control panels
- Industrial machinery
- HVAC systems
- Automotive wiring
- Lighting systems
Frequently Asked Questions
This product meets stringent UL 486A-486B compliance standards and is constructed from robust, high-quality materials, ensuring reliable performance and longevity.
Yes, this terminal is rated for continuous operation at temperatures up to 115°C and can withstand short-term exposures of up to 130°C.
| Manufacturer | Cembre |
|---|---|
| Manufacturer Part Number | 2046455 |
| Colour | Blue |
| Country of Manufacture | Italy |
| HS Code | 85369010 |
| Alternative Product SKU | BP-PP16/25 |
| Barcode | 8016692154718 |
| Packed Quantity | 100 |
