2046015 Cembre RP-M3.5 RING TERMINAL
MPN: 2046015
Alt. SKU: RP-M3.5
Special Price
£0.1334
£0.1112
Regular Price
£0.1668
2046015 Cembre RP-M3.5 RING TERMINAL is available to buy in increments of 100

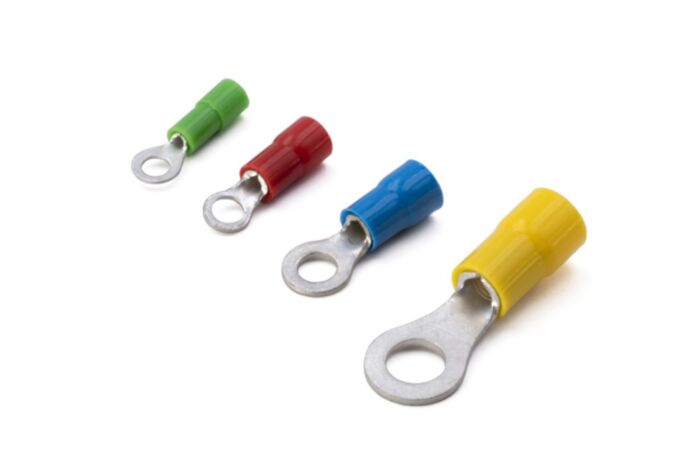

RP-M3.5 Ring Terminal (2046015): Secure and Reliable Electrical Connections
The RP-M3.5 ring terminal (Part Number: 2046015) provides a robust and reliable solution for terminating electrical wires in demanding applications. Designed for professional electricians, panel builders, and maintenance engineers, this high-quality terminal ensures secure connections compliant with UL 486A-486B standards.
Key Features
- High-Temperature Resistance: Operates reliably from -20°C to 115°C, with short-term endurance up to 130°C.
- Durable Construction: Electrolytic copper conductor with 99.95% purity and tin plating ensures long-lasting performance.
- Easy Installation: Features an easy insertion input and a knurled internal barrel surface for secure wire grip.
- Safety Certified: UL 486A-486B compliant and features a V0 flammability rating according to UL 94.
- Halogen-Free: Ensures safer installations in sensitive environments.
Technical Specifications
- SKU: 2046015
- Part Number: RP-M3.5
- Cable Cross Section: 0.25 · 1.5 mm²
- Screw Diameter: M3.5
- Insulation Material: Polycarbonate PC10500AC
- Conductor Material: Electrolytic copper (99.95% purity)
- Surface Treatment: Tin plating
- Customs Code: 85369010
- ETIM Class 7: Solderless copper terminals for copper conductors [EC001052]
- Dimensions: See detailed specifications below
Applications
- Control Panels
- Industrial Machinery
- Automotive Wiring
- HVAC Systems
- Power Distribution
This ring terminal is suitable for cable cross sections from 0.25 to 1.5 mm².
The operating temperature range is -20°C to 115°C, with short-term capability up to 130°C.
Frequently Asked Questions
What makes this product special?
This product meets strict UL 486A-486B compliance standards and is manufactured from robust, high-quality materials, including electrolytic copper with 99.95% purity and tin plating, ensuring reliability and long-lasting performance.
| Manufacturer | Cembre |
|---|---|
| Manufacturer Part Number | 2046015 |
| Colour | Red |
| Country of Manufacture | Italy |
| HS Code | 85369010 |
| Alternative Product SKU | RP-M3.5 |
| Barcode | 8016692122861 |
| Packed Quantity | 100 |
