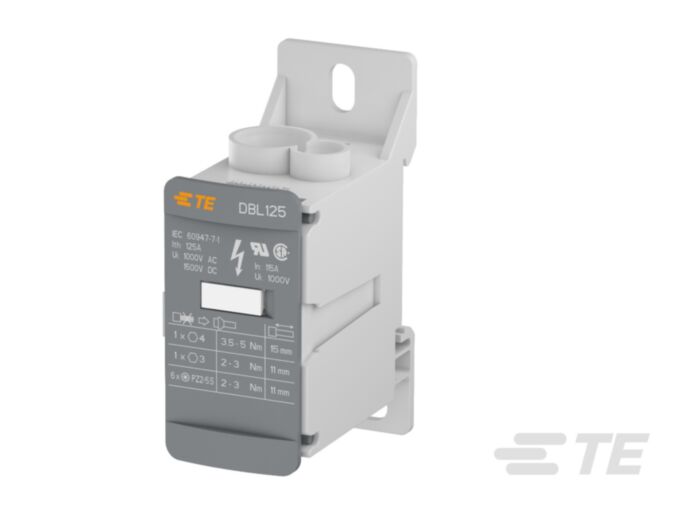

1snl312510r0000 - dbl 125 distribution block single pole

Why Choose Control Panel Accessories?

High-quality accessories help maintain safety, improve installation efficiency, and ensure long-term reliability in electrical panels.

Integration

Designed for use in electrical panels and automation systems where reliability and modularity are essential.

What Customers Say

“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead

Key Features

• Industrial-grade durability
• Consistent and safe operation
• Optimised for control panel use
• Compatible with common DIN rail configurations

Comparison with Similar Products

This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.

Technical Specifications

• Number of Poles :: 1
• Current Rating (IEC) (A):: 125
• Current Rating (UL) (A):: 115
• Number of positions: 8
• Contact Current Rating (Max) (A):: 125
• Block function: Feed-Through
• Number of Circuits :: 1
• Number of Poles - Main Circuit :: 1
• Number of Poles - Output 1 :: 1
• Number of Poles - Output 2 :: 6
• Number of Levels :: 1
• Short Circuit Current Rating (kA):: 100
• Short-Time Withstanding Current Rating @ 1s (A):: 4200
• Voltage Rating (IEC) (VAC):: 1000
• Voltage Rating (IEC) (VDC):: 1500
• Voltage Rating (CSA) (V):: 1000
• Dielectric Withstanding Voltage (Max) (V):: 2200
• Input Current (Max) (A):: 125
• Impulse Withstanding Voltage Rating (IEC) (V):: 8000
• Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V):: 1000
• Peak Withstanding Current Rating (kA):: 30
• Power Loss (W):: 4
• Colour: Grey
• Product Weight :: 122 g [ 4.304 oz ]
• Termination Method to Wire & Cable :: Screw
• Tightening Torque - Output 1 (in-lbs):: 18 - 26.5
• Tightening Torque - Output 1 (Nm):: 2 - 3
• Tightening Torque - Main Circuit (in-lbs):: 31 - 44
• Tightening Torque - Main Circuit (Nm):: 3.5 - 5
• Tightening Torque - Output 2 (Nm):: 2 - 3
• Tightening Torque - Output 2 (in-lbs):: 18 - 26.5
• Mounting: DIN Rail
• Housing material: Polyamide
• Wire Size (AWG):: 2
• Wire Size (mm²):: 35
• Tool Size - Main Circuit :: 4 mm [ .157 in ]
• Wire Stripping Length - Output 2 :: 11 mm [ .43 in ]
• Product Height :: 75 mm [ 2.645 in ]
• Product Width :: 28.2 mm [ .995 in ]
• Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (mm²):: 10 - 35
• Wire Stripping Length - Output 1 :: 11 mm [ .43 in ]
• Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (AWG):: 8 - 2
• Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (AWG):: 8 - 2
• Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²):: 10 - 35
• Hole Diameter - Main Circuit :: 9.8 mm [ .386 in ]
• Hole Diameter - Output 1 :: 6.8 mm [ .267 in ]
• Hole Diameter - Output 2 :: 6.5 mm [ .256 in ]
• Pitch: 28.2 mm [ 1.11 in ]
• Product Depth :: 50.7 mm [ 1.788 in ]
• Tool Size - Output 2 :: 5.5 mm [ .217 in ]
• Output 1 Capacity - 1 Insulated Ferrule (AWG):: 14 - 6
• Output 1 Capacity - 1 Insulated Ferrule (mm²):: 2.5 - 16
• Wire Stripping Length - Main Circuit :: 15 mm [ .591 in ]
• Output 2 Capacity - 1 Insulated Ferrule (AWG):: 14 - 6
• Tool Size - Output 1 :: 3 mm [ .118 in ]
• Output 2 Capacity - 1 Insulated Ferrule (mm²):: 2.5 - 16
• Output 1 Capacity - 1 Rigid Stranded Conductor (AWG):: 10 - 6
• Output 1 Capacity - 1 Rigid Stranded Conductor (mm²):: 6 - 16
• Output 2 Capacity - 1 Rigid Stranded Conductor (AWG):: 14 - 6
• Output 2 Capacity - 1 Rigid Stranded Conductor (mm²):: 2.5 - 16
• Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
• Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
• UL Flammability Rating :: UL 94V-0
• Tool - Output 1 :: Allen Key
• Tool - Output 2 :: Positive Drive Flat Screwdriver
• Tool - Main Circuit :: Allen Key
• Ingress protection: IP20
