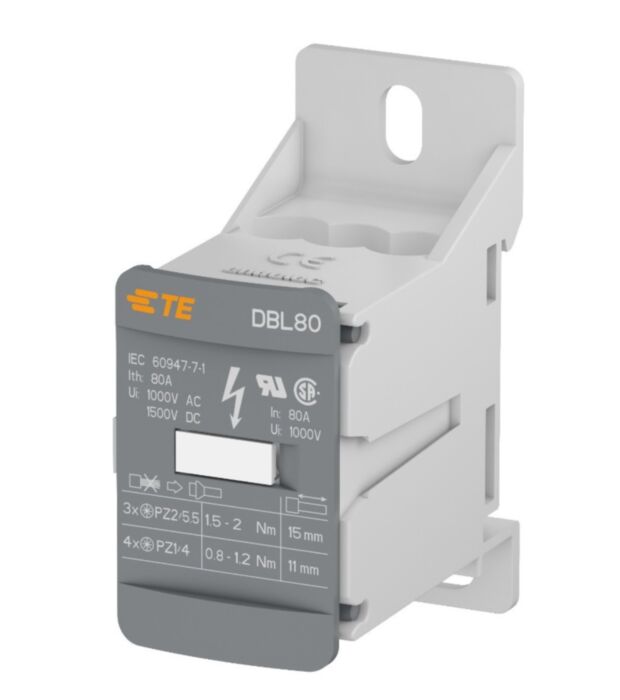

1snl308010r0000 - dbl 80 distribution block single pole

Why Choose Control Panel Accessories?

High-quality accessories help maintain safety, improve installation efficiency, and ensure long-term reliability in electrical panels.

Integration

Designed for use in electrical panels and automation systems where reliability and modularity are essential.

What Customers Say

“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead

Key Features

• Industrial-grade durability
• Consistent and safe operation
• Optimised for control panel use
• Compatible with common DIN rail configurations

Comparison with Similar Products

This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.

Technical Specifications

• Number of Poles :: 1
• Current Rating (IEC) (A):: 80
• Current Rating (UL) (A):: 80
• Number of positions: 7
• Contact Current Rating (Max) (A):: 80
• Block function: Feed-Through
• Number of Circuits :: 1
• Number of Poles - Main Circuit :: 3
• Number of Poles - Output 1 :: 4
• Number of Levels :: 1
• Short Circuit Current Rating (kA):: 100
• Short-Time Withstanding Current Rating @ 1s (A):: 1920
• Voltage Rating (IEC) (VAC):: 1000
• Voltage Rating (IEC) (VDC):: 1500
• Voltage Rating (CSA) (V):: 1000
• Dielectric Withstanding Voltage (Max) (V):: 2200
• Input Current (Max) (A):: 80
• Impulse Withstanding Voltage Rating (IEC) (V):: 8000
• Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V):: 1000
• Peak Withstanding Current Rating (kA):: 27
• Power Loss (W):: 2.56
• Colour: Grey
• Product Weight :: 70 g [ 2.469 oz ]
• Termination Method to Wire & Cable :: Screw
• Tightening Torque - Output 1 (in-lbs):: 7.2 - 10.8
• Tightening Torque - Output 1 (Nm):: .8 - 1.2
• Tightening Torque - Main Circuit (in-lbs):: 13.5 - 18
• Tightening Torque - Main Circuit (Nm):: 1.5 - 2
• Mounting: DIN Rail
• Housing material: Polyamide
• Wire Size (AWG):: 4
• Wire Size (mm²):: 16
• Tool Size - Main Circuit :: 5.5 mm [ .216 in ]
• Product Height :: 66 mm [ 2.328 in ]
• Product Width :: 28.4 mm [ 1.002 in ]
• Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (mm²):: 2.5 - 16
• Wire Stripping Length - Output 1 :: 11 mm [ .43 in ]
• Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (AWG):: 14 - 6
• Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (AWG):: 14 - 4
• Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²):: 2.5 - 16
• Hole Diameter - Main Circuit :: 6.6 mm [ .256 in ]
• Hole Diameter - Output 1 :: 4.5 mm [ .177 in ]
• Pitch: 28.4 mm [ 1.11 in ]
• Product Depth :: 50.2 mm [ 1.771 in ]
• Output 1 Capacity - 1 Insulated Ferrule (AWG):: 14 - 10
• Output 1 Capacity - 1 Insulated Ferrule (mm²):: 2.5 - 6
• Wire Stripping Length - Main Circuit :: 15 mm [ .591 in ]
• Tool Size - Output 1 :: 4 mm [ .157 in ]
• Output 1 Capacity - 1 Rigid Stranded Conductor (AWG):: 14 - 10
• Output 1 Capacity - 1 Rigid Stranded Conductor (mm²):: 2.5 - 6
• Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
• Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
• UL Flammability Rating :: UL 94V-0
• Tool - Output 1 :: Flat Screwdriver
• Tool - Main Circuit :: Flat Screwdriver
• Ingress protection: IP20
