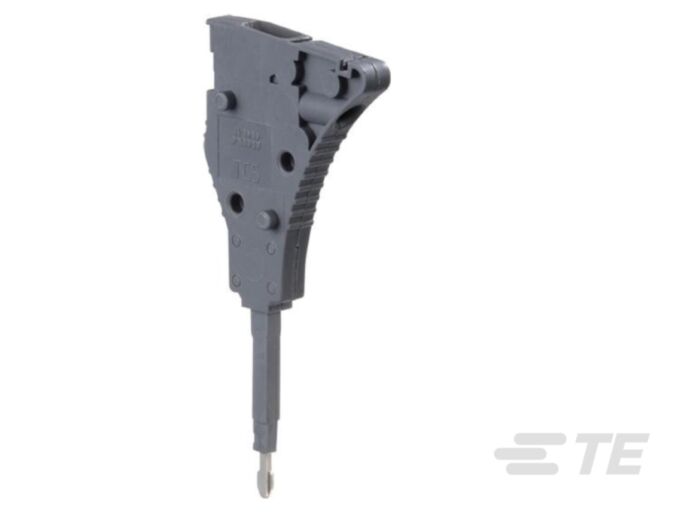

1snk900200r0000 - tc5 [pk=10] test connector
MPN: 1SNK900200R0000
Alt. SKU: TC5 [pk=10] Test Connector
Special Price
£3.89
£3.24
Regular Price
£6.49
1snk900200r0000 - tc5 [pk=10] test connector is available to buy in increments of 10
Why Choose Test Adapters?
Test adapters facilitate easy diagnostics and maintenance by allowing direct access to circuits without disturbing wiring.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Conducting Accessory Type :: Test Connector
- Number of Poles :: 1
- PCB Mount Retention Type :: Plug-In
- Colour: Dark Grey
- Pitch: 5.2 mm [ .205 in ]
- Gauge Type :: A1-B1
- Short-Time Withstanding Current Rating @ 1s (A):: 180
- Voltage Rating (IEC) (V):: 1000
- Current Rating (CSA) (A):: 12
- Current Rating (IEC) (A):: 16
- Impulse Withstanding Voltage Rating (IEC) (V):: 8000
- Dielectric Withstanding Voltage (Max) (V):: 2200
- Product Weight :: 5.2 g [ .183 oz ]
- Plastic & Resin Material Type :: Polyamide
- Contact Current Rating (Max) (A):: 16
- Tightening Torque (in-lbs):: 3.43
- Tightening Torque (Nm):: .5
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²):: .2 - 1.5
- Main Circuit Capacity - 2 Flexible Conductors per Screw Clamp (mm²):: .22 - .75
- Main Circuit Capacity - Twin Ferrule per Screw Clamp (mm²):: .22 - .75
- Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (mm²):: .2 - .75
- Tool Size :: 2.5 mm [ .098 in ]
- Product Height :: 34.1 mm [ 1.342 in ]
- Product Depth :: 71.65 mm [ 2.821 in ]
- Product Width :: 5.2 mm [ .205 in ]
- Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (mm²):: .22 - 1.5
- Main Circuit Capacity - 1 Flexible Conductor per Screw Clamp (mm²):: .22 - 1.5
- Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
- Ingress protection: IP20
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 5.2 mm [ .205 in ].
What IP rating does this terminal block have?
It has an ingress protection rating of IP20.
| Manufacturer Part Number | 1SNK900200R0000 |
|---|---|
| Height | 34.1mm |
| Width | 5.2mm |
| Depth | 71.65mm |
| Manufacturer | Entrelec |
| Packed Quantity | 10 |
| Barcode | 3472599097292 |
| Alternative Product SKU | TC5 [pk=10] Test Connector |
