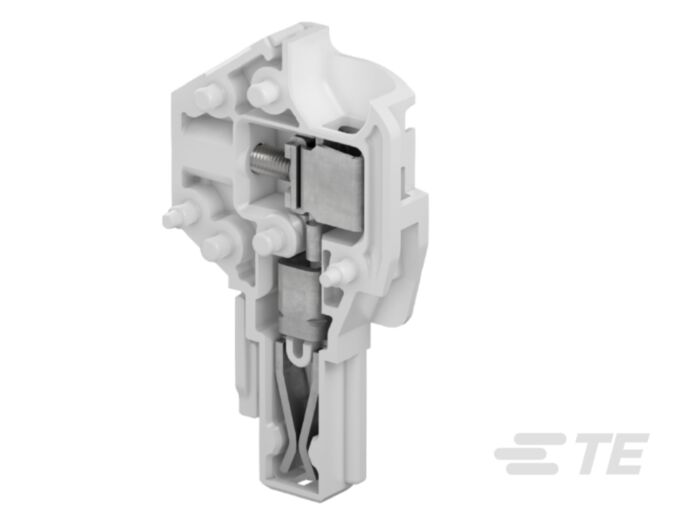

1snk805714r0000 - female plug screw
MPN: 1SNK805714R0000
Alt. SKU: FEMALE PLUG SCREW
Special Price
£0.5948
£0.4957
Regular Price
£0.9913
1snk805714r0000 - female plug screw is available to buy in increments of 50
Why Choose Control Panel Accessories?
High-quality accessories help maintain safety, improve installation efficiency, and ensure long-term reliability in electrical panels.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Product type: Female Plug Terminal Block
- Colour: Grey
- Pitch: 5.2 mm [ .205 in ]
- Number of positions: 2
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
- Number of Poles :: 1
- Gauge Type :: A3-B3
- Short-Time Withstanding Current Rating @ 1s (A):: 480
- Voltage Rating (CSA) (V):: 300
- Voltage Rating (IEC) (V):: 800
- Dielectric Withstanding Voltage (Max) (V):: 2200
- Current Rating (CSA) (A):: 28
- Current Rating (UL) (A):: 28
- Current Rating (IEC) (A):: 29
- Impulse Withstanding Voltage Rating (IEC) (V):: 8000
- Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V):: 300
- Power Loss (W):: .5
- Product Weight :: 3.86 g [ .153 oz ]
- Housing material: Polyamide
- Product Height (mm):: 22.4
- Product Length (mm):: 22.35
- Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (mm²):: .22 - 2.5
- Main Circuit Capacity - 1 Flexible Conductor per Screw Clamp (mm²):: .22 - 4
- Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (AWG):: 24 - 12
- Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (mm²):: .22 - 4
- Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (AWG):: 24 - 10
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (AWG):: 24 - 10
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²):: .2 - 4
- Main Circuit Capacity - 2 Flexible Conductors per Screw Clamp (mm²):: .22 - 1.5
- Main Circuit Capacity - Twin Ferrule per Screw Clamp (AWG):: 24 - 16
- Main Circuit Capacity - Twin Ferrule per Screw Clamp (mm²):: .22 - 1.5
- Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (AWG):: 24 - 16
- Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (mm²):: .2 - 1.5
- Wire Stripping Length :: 10.5 mm [ .413 in ]
- Tool Size :: 3.5 mm [ .138 in ]
- Product Depth (mm):: 39.4
- Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
- UL Flammability Rating :: UL 94V-0
- Ingress protection: IP20
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 5.2 mm [ .205 in ].
What IP rating does this terminal block have?
It has an ingress protection rating of IP20.
| Manufacturer Part Number | 1SNK805714R0000 |
|---|---|
| Height | 22.4mm |
| Width | 22.35mm |
| Depth | 39.4mm |
| Manufacturer | Entrelec |
| Packed Quantity | 50 |
| Barcode | 3472598057143 |
| Alternative Product SKU | FEMALE PLUG SCREW |
