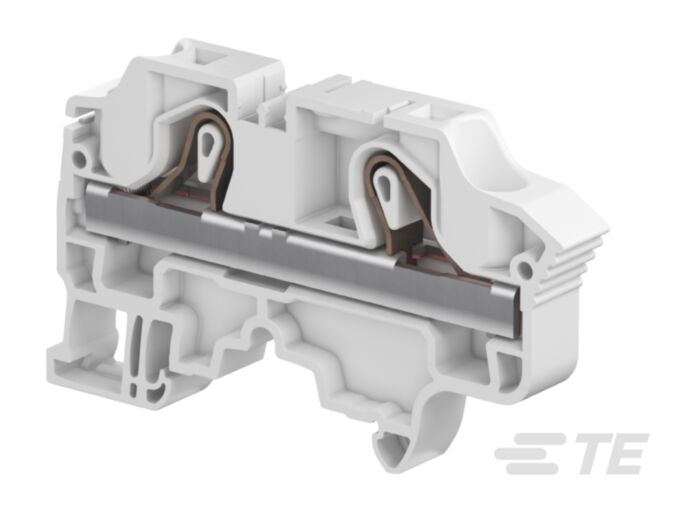

1snk710010r0000 - zk10 pi-spring clamp - grey
MPN: 1SNK710010R0000
Alt. SKU: ZK10 PI-Spring clamp - Grey
Special Price
£1.43
£1.19
Regular Price
£2.39
1snk710010r0000 - zk10 pi-spring clamp - grey is available to buy in increments of 20
Why Choose Spring Clamp Terminal Blocks?
Spring clamp terminal blocks provide secure, vibration-resistant connections without the need for screw tightening. They are ideal for fast and tool-free wiring in control cabinets and automation panels, improving efficiency and safety.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Block function: Feed-Through
- Product type: PI-Spring Terminal Block
- Colour: Grey
- Pitch: 10 mm [ .394 in ]
- Number of positions: 2
- Number of Circuits :: 1
- Gauge Type :: A6 & 5.1 mm Dia.
- Number of Levels :: 1
- Short-Time Withstanding Current Rating @ 1s (A):: 1200
- Voltage Rating (CSA) (V):: 600
- Voltage Rating (IEC) (V):: 1000
- Dielectric Withstanding Voltage (Max) (V):: 2200
- Current Rating (CSA) (A):: 55
- Current Rating (UL) (A):: 55
- Current Rating (IEC) (A):: 57
- Impulse Withstanding Voltage Rating (IEC) (V):: 8000
- Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V):: 600
- Power Loss (W):: 1.8
- Operating Voltage (VAC):: 600
- Product Weight :: 27.2 g [ 1.071 oz ]
- Contact Current Rating (Max) (A):: 57
- Termination Method to Wire & Cable :: Spring Terminal
- Mounting: DIN Rail
- Housing material: Polyamide
- Product Height :: 82.5 mm [ 3.248 in ]
- Product Length :: 47.5 mm [ 1.87 in ]
- Main Circuit Capacity - 1 Insulated Ferrule per Spring Clamp (AWG):: 20 - 8
- Main Circuit Capacity - 1 Flexible Conductor per Spring Clamp (mm²):: .5 - 10
- Main Circuit Capacity - 1 Non-Insulated Ferrule per Spring Clamp (AWG):: 20 - 8
- Main Circuit Capacity - 1 Insulated Ferrule per Spring Clamp (mm²):: .5 - 10
- Main Circuit Capacity - 1 Non-Insulated Ferrule per Spring Clamp (mm²):: .5 - 10
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Spring Clamp (AWG):: 20 - 6
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Spring Clamp (mm²):: .5 - 16
- Main Circuit Capacity - Twin Ferrule per Spring Clamp (AWG):: 20 - 12
- Wire Stripping Length :: 15 mm [ .591 in ]
- Tool Size :: 4 mm [ .157 in ]
- Product Depth :: 47.5 mm [ 1.87 in ]
- Main Circuit Capacity - Twin Ferrule per Spring Clamp (mm²):: .5 - 4
- Wire Size (mm²):: 10
- Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
- Circuit Application :: Power & Signal
- UL Flammability Rating :: UL 94V-0
- Ingress protection: IP20
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 10 mm [ .394 in ].
How is the terminal block mounted?
It is designed for DIN Rail mounting.
What IP rating does this terminal block have?
It has an ingress protection rating of IP20.
| Manufacturer Part Number | 1SNK710010R0000 |
|---|---|
| Height | 82.5mm |
| Width | 47.5mm |
| Depth | 47.5mm |
| Manufacturer | Entrelec |
| Packed Quantity | 20 |
| Barcode | 3472597100109 |
| Alternative Product SKU | ZK10 PI-Spring clamp - Grey |
