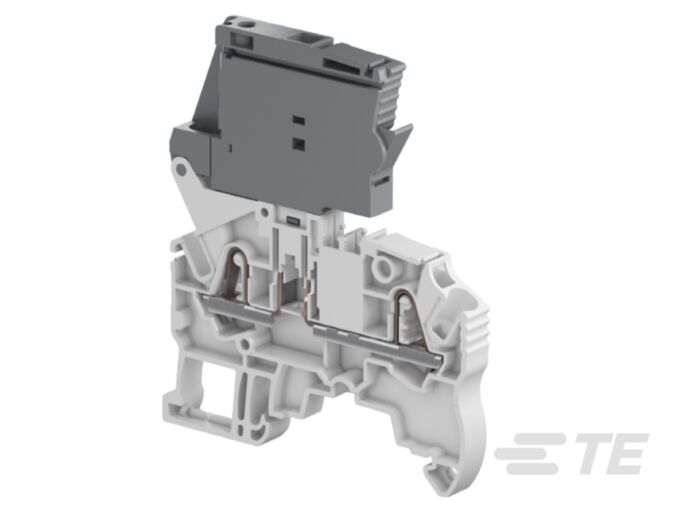

1snk706410r0000 - zk2.5-sf pi-spring clamp - fuses - grey
MPN: 1SNK706410R0000
Alt. SKU: ZK2.5-SF PI-Spring Clamp - Fuses - Grey
Special Price
£3.48
£2.90
Regular Price
£5.81
1snk706410r0000 - zk2.5-sf pi-spring clamp - fuses - grey is available to buy in increments of 50
Why Choose Fused Terminal Blocks?
Fused terminal blocks offer integrated circuit protection within a modular terminal design. They allow fast replacement of blown fuses while maintaining a neat and serviceable panel layout.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Block function: Fuse
- Product type: PI-Spring Terminal Block
- Colour: Grey & Dark Grey
- Pitch: 6 mm [ .236 in ]
- Number of positions: 2
- Number of Circuits :: 1
- Gauge Type :: A2 / 2.3 mm Dia.
- Number of Levels :: 1
- Voltage Rating (CSA) (V):: 300
- Voltage Rating (IEC) (V):: 500
- Current Rating (CSA) (A):: 16
- Current Rating (UL) (A):: 16
- Current Rating (IEC) (A):: 6.3
- Impulse Withstanding Voltage Rating (IEC) (V):: 6000
- Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V):: 300
- Power Loss (W):: 1.6
- Operating Voltage (VAC):: 300
- Product Weight :: 16.2 g [ .638 oz ]
- Termination Method to Wire & Cable :: Spring Terminal
- Mounting: DIN Rail
- Housing material: Polyamide
- Product Height :: 63.1 mm [ 2.484 in ]
- Product Length :: 72.5 mm [ 2.854 in ]
- Main Circuit Capacity - 1 Insulated Ferrule per Spring Clamp (AWG):: 26 - 14
- Main Circuit Capacity - 1 Flexible Conductor per Spring Clamp (mm²):: .22 - 2.5
- Main Circuit Capacity - 1 Non-Insulated Ferrule per Spring Clamp (AWG):: 26 - 14
- Main Circuit Capacity - 1 Insulated Ferrule per Spring Clamp (mm²):: .22 - 2.5
- Main Circuit Capacity - 1 Non-Insulated Ferrule per Spring Clamp (mm²):: .22 - 2.5
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Spring Clamp (AWG):: 26 - 12
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Spring Clamp (mm²):: .2 - 4
- Main Circuit Capacity - Twin Ferrule per Spring Clamp (AWG):: 26 - 20
- Wire Stripping Length :: 11 mm [ .433 in ]
- Tool Size :: 3.5 mm [ .138 in ]
- Product Depth :: 72.5 mm [ 2.854 in ]
- Main Circuit Capacity - Twin Ferrule per Spring Clamp (mm²):: .22 - .5
- Wire Size (AWG):: 12
- Wire Size (mm²):: 2.5
- Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
- Circuit Application :: Power & Signal
- UL Flammability Rating :: UL 94V-0
- Ingress protection: IP20
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 6 mm [ .236 in ].
How is the terminal block mounted?
It is designed for DIN Rail mounting.
What IP rating does this terminal block have?
It has an ingress protection rating of IP20.
| Manufacturer Part Number | 1SNK706410R0000 |
|---|---|
| Height | 63.1mm |
| Width | 72.5mm |
| Depth | 72.5mm |
| Manufacturer | Entrelec |
| Packed Quantity | 50 |
| Barcode | 3472597064104 |
| Alternative Product SKU | ZK2.5-SF PI-Spring Clamp - Fuses - Grey |
