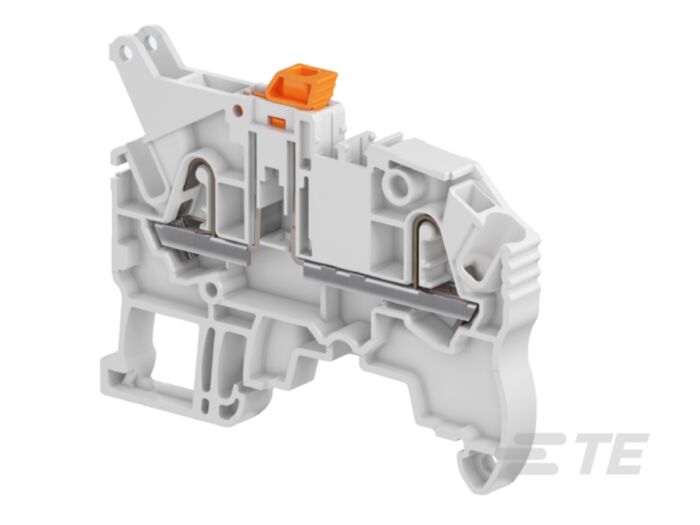

1snk706310r0000 - zk2.5-s pi-spring disc with blade - grey

Integration

Designed for use in electrical panels and automation systems where reliability and modularity are essential.

What Customers Say

“Reliable quality and easy installation — a must-have in every panel we build.” – Panel Assembly Lead

Key Features

• Industrial-grade durability
• Consistent and safe operation
• Optimized for control panel use
• Compatible with common DIN rail configurations

Comparison with Similar Products

This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.

Technical Specifications

• Block function: Disconnect
• Product type: PI-Spring Terminal Block
• Colour: Gray
• Pitch: 6 mm [ .236 in ]
• Number of positions: 2
• Number of Circuits: 1
• Gauge Type: A2 / 2.3 mm Dia.
• Number of Levels: 1
• Short-Time Withstanding Current Rating @ 1s (A): 300
• Voltage Rating (CSA) (V): 300
• Voltage Rating (IEC) (V): 630
• Current Rating (CSA) (A): 14
• Current Rating (UL) (A): 20
• Current Rating (IEC) (A): 20
• Impulse Withstanding Voltage Rating (IEC) (V): 6000
• Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V): 300
• Power Loss (W): 1.6
• Product Weight: 8.9 g [ .35 oz ]
• Mounting: DIN Rail
• Housing material: Polyamide
• Product Height (mm): 63.1
• Product Length (mm): 47.3
• Main Circuit Capacity - 1 Insulated Ferrule per Spring Clamp (AWG): 26 – 14
• Main Circuit Capacity - 1 Flexible Conductor per Spring Clamp (mm²): .22 – 2.5
• Main Circuit Capacity - 1 Non-Insulated Ferrule per Spring Clamp (AWG): 26 – 14
• Main Circuit Capacity - 1 Insulated Ferrule per Spring Clamp (mm²): .22 – 2.5
• Main Circuit Capacity - 1 Non-Insulated Ferrule per Spring Clamp (mm²): .22 – 2.5
• Main Circuit Capacity - 1 Rigid Stranded Conductor per Spring Clamp (AWG): 26 – 12
• Main Circuit Capacity - 1 Rigid Stranded Conductor per Spring Clamp (mm²): .2 – 4
• Main Circuit Capacity - Twin Ferrule per Spring Clamp (AWG): 26 – 20
• Wire Stripping Length: 11 mm [ .433 in ]
• Tool Size: 3.5 mm [ .138 in ]
• Product Depth (mm): 47.3
• Main Circuit Capacity - Twin Ferrule per Spring Clamp (mm²): .22 – .5
• Installation Temperature Range: -5 – 40 °C [ 23 – 104 °F ]
• Operating temperature range: -55 – 110 °C [ -67 – 230 °F ]
• UL Flammability Rating: UL 94V-0
• Ingress protection: IP20
