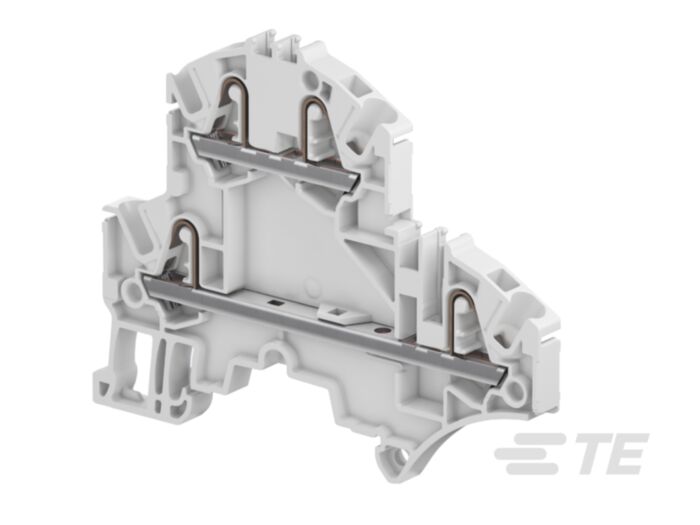

1snk705210r0000 - zk2.5-d2 pi-spring double deck - grey
MPN: 1SNK705210R0000
Alt. SKU: ZK2.5-D2 PI-Spring Double deck - Grey
Special Price
£1.31
£1.09
Regular Price
£2.17
1snk705210r0000 - zk2.5-d2 pi-spring double deck - grey is available to buy in increments of 50
Why Choose Double-Deck Terminal Blocks?
Double-deck terminal blocks offer two connection levels in a single footprint, saving panel space and enabling efficient wiring in high-density applications like automation and process control systems.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Block function: Feed-Through
- Product type: PI-Spring Terminal Block
- Colour: Grey
- Pitch: 5.2 mm [ .205 in ]
- Number of positions: 4
- Number of Circuits :: 2
- Gauge Type :: A2 / 2.3 mm Dia.
- Number of Levels :: 2
- Short-Time Withstanding Current Rating @ 1s (A):: 300
- Voltage Rating (CSA) (V):: 600
- Voltage Rating (IEC) (V):: 800
- Current Rating (CSA) (A):: 20
- Current Rating (UL) (A):: 20
- Current Rating (IEC) (A):: 24
- Impulse Withstanding Voltage Rating (IEC) (V):: 8000
- Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V):: 600
- Power Loss (W):: 1.6
- Operating Voltage (VAC):: 600
- Product Weight :: 11.2 g [ .441 oz ]
- Termination Method to Wire & Cable :: Spring Terminal
- Mounting: DIN Rail
- Housing material: Polyamide
- Product Height :: 78.5 mm [ 3.09 in ]
- Product Length :: 60.2 mm [ 2.37 in ]
- Main Circuit Capacity - 1 Insulated Ferrule per Spring Clamp (AWG):: 26 - 14
- Main Circuit Capacity - 1 Flexible Conductor per Spring Clamp (mm²):: .22 - 2.5
- Main Circuit Capacity - 1 Non-Insulated Ferrule per Spring Clamp (AWG):: 26 - 14
- Main Circuit Capacity - 1 Insulated Ferrule per Spring Clamp (mm²):: .22 - 2.5
- Main Circuit Capacity - 1 Non-Insulated Ferrule per Spring Clamp (mm²):: .22 - 2.5
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Spring Clamp (AWG):: 26 - 12
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Spring Clamp (mm²):: .2 - 4
- Main Circuit Capacity - Twin Ferrule per Spring Clamp (AWG):: 26 - 20
- Wire Stripping Length :: 11 mm [ .433 in ]
- Tool Size :: 3.5 mm [ .138 in ]
- Product Depth :: 60.2 mm [ 2.37 in ]
- Main Circuit Capacity - Twin Ferrule per Spring Clamp (mm²):: .22 - .5
- Wire Size (AWG):: 12
- Wire Size (mm²):: 2.5
- Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
- Circuit Application :: Power & Signal
- UL Flammability Rating :: UL 94V-0
- Ingress protection: IP20
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 5.2 mm [ .205 in ].
How is the terminal block mounted?
It is designed for DIN Rail mounting.
What IP rating does this terminal block have?
It has an ingress protection rating of IP20.
| Manufacturer Part Number | 1SNK705210R0000 |
|---|---|
| Height | 78.5mm |
| Width | 60.2mm |
| Depth | 60.2mm |
| Manufacturer | Entrelec |
| Packed Quantity | 50 |
| Barcode | 3472597052101 |
| Alternative Product SKU | ZK2.5-D2 PI-Spring Double deck - Grey |
