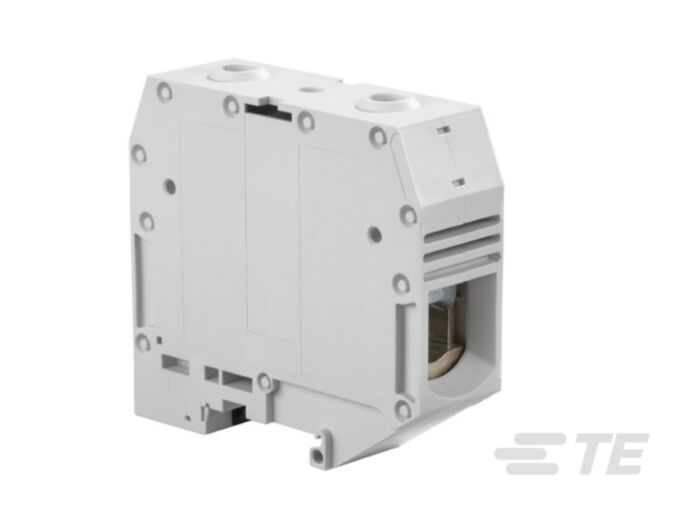

1snk526060r0000 - zs95-yl
MPN: 1SNK526060R0000
Alt. SKU: ZS95-YL
Special Price
£14.82
£12.35
Regular Price
£24.70
1snk526060r0000 - zs95-yl is available to buy in increments of 10
Why Choose Control Panel Accessories?
High-quality accessories help maintain safety, improve installation efficiency, and ensure long-term reliability in electrical panels.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Block function: Feed-Through
- Product type: Screw Clamp Terminal Block
- Colour: Yellow
- Pitch: 26 mm [ 1.024 in ]
- Number of positions: 2
- Number of Circuits :: 1
- Gauge Type :: B12
- Number of Levels :: 1
- Short-Time Withstanding Current Rating @ 1s (A):: 11400
- Voltage Rating (CSA) (V):: 600
- Voltage Rating (IEC) (V):: 1000
- Dielectric Withstanding Voltage (Max) (V):: 3500
- Current Rating (UL) (A):: 230
- Current Rating (IEC) (A):: 232
- Impulse Withstanding Voltage Rating (IEC) (V):: 8000
- Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V):: 1000
- Power Loss (W):: 7.4
- Product Weight :: 215.1 g [ 8.468 oz ]
- Mounting: DIN Rail
- Housing material: Polyamide
- Product Height (mm):: 87
- Product Length :: 80.1 mm [ 3.15 in ]
- Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (mm²):: 35 - 50
- Main Circuit Capacity - 1 Flexible Conductor per Screw Clamp (mm²):: 35 - 95
- Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (mm²):: 35 - 50
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (AWG):: 2 - 0000
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²):: 35 - 120
- Main Circuit Capacity - 2 Flexible Conductors per Screw Clamp (AWG):: 4 - 2
- Main Circuit Capacity - 2 Flexible Conductors per Screw Clamp (mm²):: 25 - 35
- Main Circuit Capacity - Twin Ferrule per Screw Clamp (AWG):: 6
- Main Circuit Capacity - Twin Ferrule per Screw Clamp (mm²):: 16
- Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (AWG):: 4 - 2
- Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (mm²):: 25 - 35
- Wire Stripping Length :: 26 mm [ 1.024 in ]
- Tool Size :: 6 mm [ .236 in ]
- Product Depth (mm):: 80.1
- Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
- UL Flammability Rating :: UL 94V-0
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 26 mm [ 1.024 in ].
How is the terminal block mounted?
It is designed for DIN Rail mounting.
| Manufacturer Part Number | 1SNK526060R0000 |
|---|---|
| Height | 87mm |
| Width | 80.1mm |
| Depth | 80.1mm |
| Manufacturer | Entrelec |
| Packed Quantity | 10 |
| Barcode | 3472595260607 |
| Alternative Product SKU | ZS95-YL |
