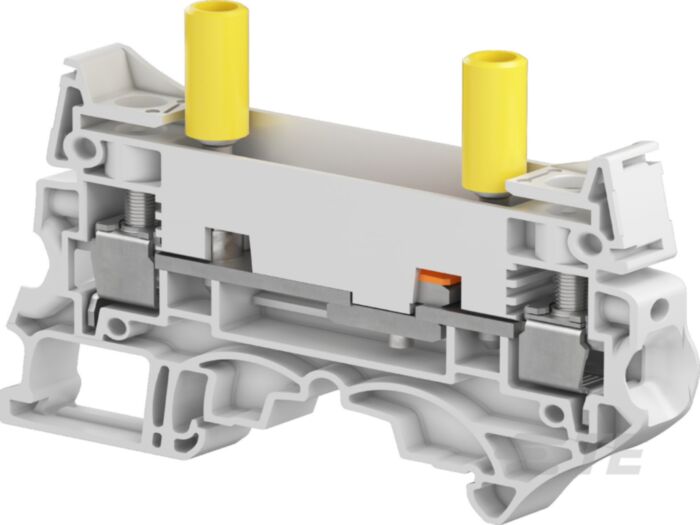

1snk508311r0000 - zs10-st-t4 10mm sliding link terminal

Integration

Designed for use in electrical panels and automation systems where reliability and modularity are essential.

What Customers Say

“Reliable quality and easy installation — a must-have in every panel we build.” – Panel Assembly Lead

Key Features

• Industrial-grade durability
• Consistent and safe operation
• Optimized for control panel use
• Compatible with common DIN rail configurations

Comparison with Similar Products

This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.

Technical Specifications

• Block function: Disconnect
• Product type: Screw Clamp Terminal Block
• Colour: Gray
• Pitch: 8 mm [ .315 in ]
• Number of positions: 2
• Number of Circuits: 1
• Number of Poles: 2
• Gauge Type: A5-B5
• Number of Levels: 1
• Short-Time Withstanding Current Rating @ 1s (A): 1200
• Voltage Rating (CSA) (V): 300
• Voltage Rating (IEC) (V): 630
• Dielectric Withstanding Voltage (Max) (V): 2000
• Current Rating (CSA) (A): 53
• Current Rating (UL) (A): 53
• Current Rating (IEC) (A): 50
• Impulse Withstanding Voltage Rating (IEC) (V): 8000
• Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V): 300
• Power Loss (W): 2.6
• Operating Voltage (VAC): 300
• Product Weight: 31.9 g [ 1.256 oz ]
• Termination Method to Wire & Cable: Screw Terminal
• Terminal Block Disconnect Type: Sliding Link
• Mounting: DIN Rail
• Housing material: Polyamide
• Main Circuit Capacity - 1 Flexible Conductor per Screw Clamp (AWG): 24 – 6
• Product Height: 80.7 mm [ 3.177 in ]
• Product Length: 61.1 mm [ 2.41 in ]
• Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (mm²): .5 – 6
• Main Circuit Capacity - 1 Flexible Conductor per Screw Clamp (mm²): .5 – 10
• Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (AWG): 24 – 10
• Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (mm²): .5 – 10
• Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (AWG): 24 – 8
• Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (AWG): 24 – 6
• Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²): .5 – 10
• Main Circuit Capacity - 2 Flexible Conductors per Screw Clamp (AWG): 20 – 12
• Main Circuit Capacity - 2 Flexible Conductors per Screw Clamp (mm²): .5 – 4
• Main Circuit Capacity - Twin Ferrule per Screw Clamp (AWG): 20 – 12
• Main Circuit Capacity - Twin Ferrule per Screw Clamp (mm²): .5 – 4
• Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (AWG): 20 – 12
• Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (mm²): .5 – 4
• Wire Stripping Length: 13 mm [ .512 in ]
• Tool Size: 3.5 mm [ .138 in ]
• Product Depth: 61.1 mm [ 2.405 in ]
• Wire Size (AWG): 6
• Wire Size (mm²): 10
• Installation Temperature Range: -5 – 40 °C [ 23 – 104 °F ]
• Operating temperature range: -55 – 110 °C [ -67 – 230 °F ]
• Circuit Application: Power & Signal
• UL Flammability Rating: UL 94V-0
• Ingress protection: IP20
