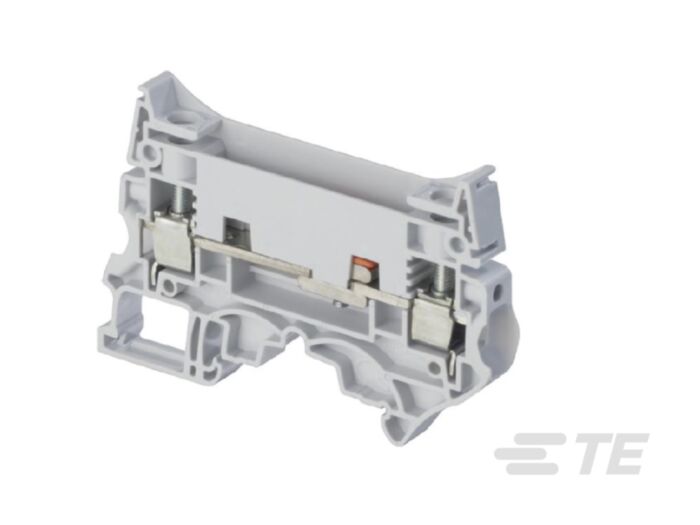

1snk508310r0000 - zs10-st test disconnect terminal

Why Choose Terminal Blocks?

Terminal blocks provide secure, modular connections for managing electrical conductors within control panels and automation equipment. They simplify wiring, improve safety, and ensure reliable operation in industrial systems.

Integration

Designed for use in electrical panels and automation systems where reliability and modularity are essential.

What Customers Say

“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead

Key Features

• Industrial-grade durability
• Consistent and safe operation
• Optimised for control panel use
• Compatible with common DIN rail configurations

Comparison with Similar Products

This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.

Technical Specifications

• Block function: Disconnect
• Product type: Screw Clamp Terminal Block
• Colour: Grey
• Pitch: 8 mm [ .315 in ]
• Number of positions: 2
• Number of Circuits :: 1
• Number of Poles :: 2
• Gauge Type :: A5-B5
• Number of Levels :: 1
• Short-Time Withstanding Current Rating @ 1s (A):: 1200
• Voltage Rating (CSA) (V):: 300
• Voltage Rating (IEC) (V):: 630
• Dielectric Withstanding Voltage (Max) (V):: 2000
• Current Rating (CSA) (A):: 53
• Current Rating (UL) (A):: 53
• Current Rating (IEC) (A):: 50
• Impulse Withstanding Voltage Rating (IEC) (V):: 8000
• Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V):: 300
• Power Loss (W):: 2.6
• Operating Voltage (VAC):: 300
• Product Weight :: 24.8 g [ .976 oz ]
• Termination Method to Wire & Cable :: Screw Terminal
• Terminal Block Disconnect Type :: Sliding Link
• Mounting: DIN Rail
• Housing material: Polyamide
• Main Circuit Capacity - 1 Flexible Conductor per Screw Clamp (AWG):: 24 - 6
• Product Height :: 80.7 mm [ 3.177 in ]
• Product Length :: 52 mm [ 2.04 in ]
• Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (mm²):: .5 - 6
• Main Circuit Capacity - 1 Flexible Conductor per Screw Clamp (mm²):: .5 - 10
• Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (AWG):: 24 - 10
• Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (mm²):: .5 - 10
• Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (AWG):: 24 - 8
• Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (AWG):: 24 - 6
• Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²):: .5 - 10
• Main Circuit Capacity - 2 Flexible Conductors per Screw Clamp (AWG):: 20 - 12
• Main Circuit Capacity - 2 Flexible Conductors per Screw Clamp (mm²):: .5 - 4
• Main Circuit Capacity - Twin Ferrule per Screw Clamp (AWG):: 20 - 12
• Main Circuit Capacity - Twin Ferrule per Screw Clamp (mm²):: .5 - 4
• Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (AWG):: 20 - 12
• Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (mm²):: .5 - 4
• Wire Stripping Length :: 13 mm [ .512 in ]
• Tool Size :: 3.5 mm [ .138 in ]
• Product Depth :: 52 mm [ 2.047 in ]
• Wire Size (AWG):: 6
• Wire Size (mm²):: 10
• Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
• Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
• Circuit Application :: Power & Signal
• UL Flammability Rating :: UL 94V-0
• Ingress protection: IP20
