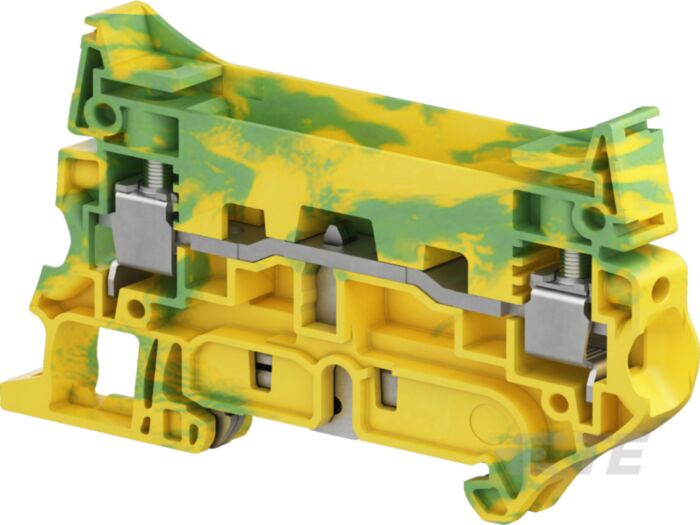

1snk508151r0000 - zs10-pe-r1 10mm earth terminal
MPN: 1SNK508151R0000
Alt. SKU: ZS10-PE-R1 10mm Earth Terminal
Special Price
£5.88
£4.90
Regular Price
£9.80
1snk508151r0000 - zs10-pe-r1 10mm earth terminal is available to buy in increments of 25
Why Choose Earth Terminal Blocks?
Earth terminal blocks ensure safe and reliable grounding in electrical enclosures, protecting equipment and personnel. They are essential for meeting grounding regulations in control panels.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Block function: Ground
- Product type: Screw Clamp Terminal Block
- Colour: Green & Yellow
- Pitch: 8 mm [ .315 in ]
- Number of positions: 2
- Number of Circuits :: 1
- Gauge Type :: A5-B5
- Number of Levels :: 1
- Short-Time Withstanding Current Rating @ 1s (A):: 1200
- Voltage Rating (CSA) (V):: 300
- Dielectric Withstanding Voltage (Max) (V):: 2000
- Impulse Withstanding Voltage Rating (IEC) (V):: 8000
- Product Weight :: 28.4 g [ 1.118 oz ]
- Mounting: DIN Rail
- Housing material: Polyamide
- Main Circuit Capacity - 1 Flexible Conductor per Screw Clamp (AWG):: 24 - 6
- Product Length :: 52 mm [ 2.04 in ]
- Product Height (mm):: 80.7
- Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (mm²):: .5 - 6
- Main Circuit Capacity - 1 Flexible Conductor per Screw Clamp (mm²):: .5 - 10
- Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (AWG):: 24 - 10
- Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (mm²):: .5 - 10
- Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (AWG):: 24 - 8
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (AWG):: 24 - 6
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²):: .5 - 10
- Main Circuit Capacity - 2 Flexible Conductors per Screw Clamp (AWG):: 20 - 12
- Main Circuit Capacity - 2 Flexible Conductors per Screw Clamp (mm²):: .5 - 4
- Main Circuit Capacity - Twin Ferrule per Screw Clamp (AWG):: 20 - 12
- Main Circuit Capacity - Twin Ferrule per Screw Clamp (mm²):: .5 - 4
- Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (AWG):: 20 - 12
- Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (mm²):: .5 - 4
- Wire Stripping Length :: 13 mm [ .512 in ]
- Tool Size :: 3.5 mm [ .138 in ]
- Product Depth (mm):: 52
- Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
- UL Flammability Rating :: UL 94V-0
- Ingress protection: IP20
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 8 mm [ .315 in ].
How is the terminal block mounted?
It is designed for DIN Rail mounting.
What IP rating does this terminal block have?
It has an ingress protection rating of IP20.
| Manufacturer Part Number | 1SNK508151R0000 |
|---|---|
| Height | 80.7mm |
| Width | 52mm |
| Depth | 52mm |
| Manufacturer | Entrelec |
| Packed Quantity | 25 |
| Barcode | 3472595081516 |
| Alternative Product SKU | ZS10-PE-R1 10mm Earth Terminal |
