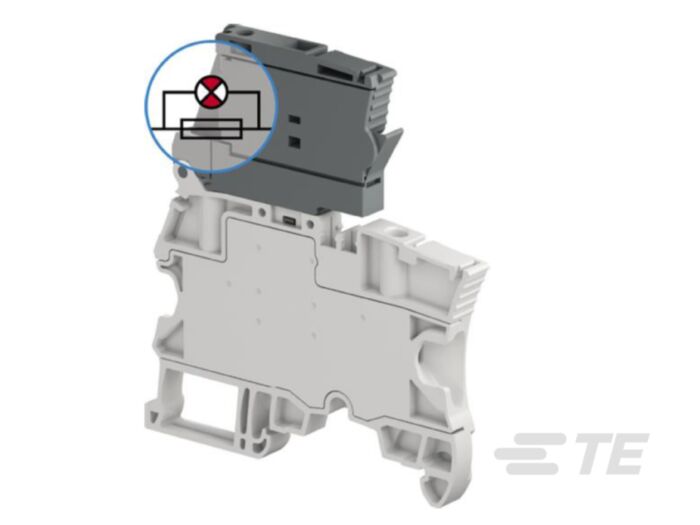

1snk506412r0000 - zs4-sf-r1 [pk=50] fuse terminal block

Why Choose Fused Terminal Blocks?

Fused terminal blocks offer integrated circuit protection within a modular terminal design. They allow fast replacement of blown fuses while maintaining a neat and serviceable panel layout.

Integration

Designed for use in electrical panels and automation systems where reliability and modularity are essential.

What Customers Say

“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead

Key Features

• Industrial-grade durability
• Consistent and safe operation
• Optimised for control panel use
• Compatible with common DIN rail configurations

Comparison with Similar Products

This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.

Technical Specifications

• Block function: Fuse
• Product type: Screw Clamp Terminal Block
• Colour: Grey & Dark Grey
• Pitch: 6 mm [ .236 in ]
• Number of positions: 2
• Number of Circuits :: 1
• Gauge Type :: A3-B3
• Number of Levels :: 1
• Voltage Rating (CSA) (V):: 150
• Voltage Rating (IEC) (V):: 500
• Dielectric Withstanding Voltage (Max) (V):: 1890
• Current Rating (CSA) (A):: 6.3
• Current Rating (UL) (A):: 10
• Current Rating (IEC) (A):: 6.3
• Impulse Withstanding Voltage Rating (IEC) (V):: 6000
• Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V):: 150
• Operating Voltage (VAC):: 150
• Product Weight :: 18.6 g [ .732 oz ]
• Termination Method to Wire & Cable :: Screw Terminal
• Mounting: DIN Rail
• Housing material: Polyamide
• Main Circuit Capacity - 1 Flexible Conductor per Screw Clamp (AWG):: 24 - 10
• Product Height :: 70.5 mm [ 2.775 in ]
• Product Length :: 76.8 mm [ 3.02 in ]
• Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (mm²):: .22 - 4
• Main Circuit Capacity - 1 Flexible Conductor per Screw Clamp (mm²):: .22 - 4
• Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (AWG):: 24 - 12
• Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (mm²):: .22 - 4
• Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (AWG):: 24 - 12
• Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (AWG):: 24 - 10
• Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²):: .2 - 4
• Main Circuit Capacity - 2 Flexible Conductors per Screw Clamp (AWG):: 24 - 16
• Main Circuit Capacity - 2 Flexible Conductors per Screw Clamp (mm²):: .2 - 1.5
• Main Circuit Capacity - Twin Ferrule per Screw Clamp (AWG):: 24 - 16
• Main Circuit Capacity - Twin Ferrule per Screw Clamp (mm²):: .22 - 1.5
• Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (AWG):: 24 - 16
• Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (mm²):: .2 - 1.5
• Wire Stripping Length :: 10.5 mm [ .413 in ]
• Tool Size :: 3.5 mm [ .138 in ]
• Product Depth :: 76.8 mm [ 3.024 in ]
• Wire Size (AWG):: 10
• Wire Size (mm²):: 4
• Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
• Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
• Circuit Application :: Power & Signal
• UL Flammability Rating :: UL 94V-0
• Ingress protection: IP20
