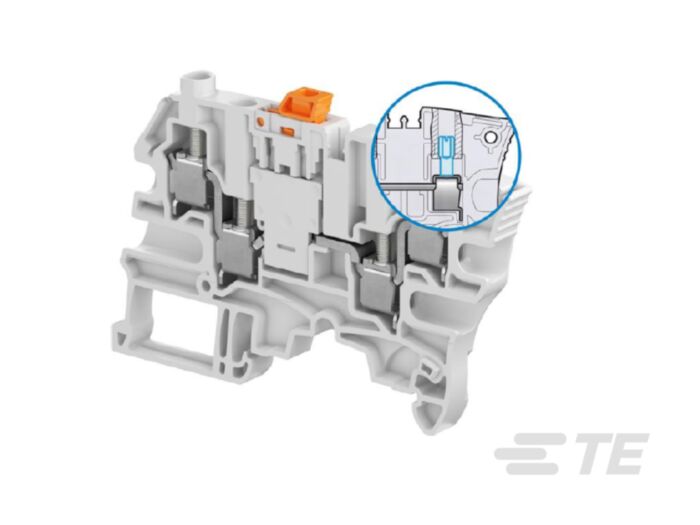

1snk506316r0000 - zs6-s-4s-t2 screw disc with blade - grey
MPN: 1SNK506316R0000
Alt. SKU: ZS6-S-4S-T2 Screw Disc with blade - Grey
Special Price
£3.01
£2.51
Regular Price
£5.02
1snk506316r0000 - zs6-s-4s-t2 screw disc with blade - grey is available to buy in increments of 50
Why Choose Control Panel Accessories?
High-quality accessories help maintain safety, improve installation efficiency, and ensure long-term reliability in electrical panels.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Block function: Disconnect
- Product type: Screw Clamp Terminal Block
- Colour: Grey
- Pitch: 6 mm [ .236 in ]
- Number of positions: 4
- Number of Circuits :: 1
- Gauge Type :: A4-B3
- Number of Levels :: 1
- Short-Time Withstanding Current Rating @ 1s (A):: 480
- Voltage Rating (CSA) (V):: 300
- Voltage Rating (IEC) (V):: 500
- Dielectric Withstanding Voltage (Max) (V):: 1890
- Current Rating (CSA) (A):: 28
- Current Rating (UL) (A):: 28
- Current Rating (IEC) (A):: 27
- Impulse Withstanding Voltage Rating (IEC) (V):: 6000
- Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V):: 300
- Power Loss (W):: 1.7
- Operating Voltage (VAC):: 300
- Product Weight :: 18.4 g [ .724 oz ]
- Termination Method to Wire & Cable :: Screw Terminal
- Terminal Block Disconnect Type :: Blade
- Mounting: DIN Rail
- Housing material: Polyamide
- Product Height :: 80.7 mm [ 3.177 in ]
- Product Length :: 51.4 mm [ 2.024 in ]
- Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (mm²):: .22 - 4
- Main Circuit Capacity - 1 Flexible Conductor per Screw Clamp (mm²):: .22 - 6
- Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (AWG):: 24 - 12
- Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (mm²):: .22 - 4
- Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (AWG):: 24 - 12
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (AWG):: 24 - 10
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²):: .2 - 6
- Main Circuit Capacity - 2 Flexible Conductors per Screw Clamp (mm²):: .2 - 2.5
- Main Circuit Capacity - Twin Ferrule per Screw Clamp (AWG):: 24 - 14
- Main Circuit Capacity - Twin Ferrule per Screw Clamp (mm²):: .22 - 2.5
- Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (AWG):: 24 - 14
- Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (mm²):: .2 - 2.5
- Wire Stripping Length :: 10.5 mm [ .413 in ]
- Tool Size :: 4 mm [ .157 in ]
- Product Depth :: 51.4 mm [ 2.024 in ]
- Wire Size (AWG):: 10
- Wire Size (mm²):: 6
- Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
- Circuit Application :: Power & Signal
- UL Flammability Rating :: UL 94V-0
- Ingress protection: IP20
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 6 mm [ .236 in ].
How is the terminal block mounted?
It is designed for DIN Rail mounting.
What IP rating does this terminal block have?
It has an ingress protection rating of IP20.
| Manufacturer Part Number | 1SNK506316R0000 |
|---|---|
| Height | 80.7mm |
| Width | 51.4mm |
| Depth | 51.4mm |
| Manufacturer | Entrelec |
| Packed Quantity | 50 |
| Barcode | 3472595063161 |
| Alternative Product SKU | ZS6-S-4S-T2 Screw Disc with blade - Grey |
