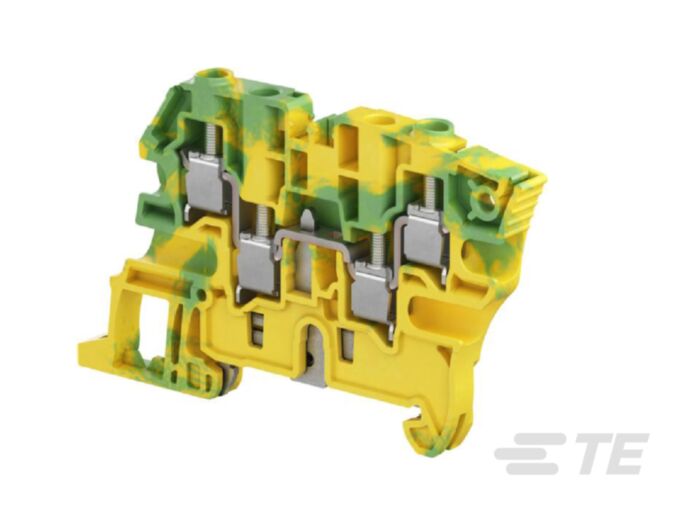

1snk506152r0000 - zs6-4s-pe screw clamp green/yellow
MPN: 1SNK506152R0000
Alt. SKU: ZS6-4S-PE Screw Clamp Green/Yellow
Special Price
£3.83
£3.19
Regular Price
£6.38
1snk506152r0000 - zs6-4s-pe screw clamp green/yellow is available to buy in increments of 25
Why Choose Control Panel Accessories?
High-quality accessories help maintain safety, improve installation efficiency, and ensure long-term reliability in electrical panels.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Block function: Ground
- Product type: Screw Clamp Terminal Block
- Colour: Green & Yellow
- Pitch: 6 mm [ .236 in ]
- Number of positions: 4
- Number of Circuits :: 1
- Gauge Type :: A4-B3
- Number of Levels :: 1
- Short-Time Withstanding Current Rating @ 1s (A):: 480
- Dielectric Withstanding Voltage (Max) (V):: 2000
- Impulse Withstanding Voltage Rating (IEC) (V):: 8000
- Product Weight :: 19.4 g [ .764 oz ]
- Mounting: DIN Rail
- Housing material: Polyamide
- Product Height (mm):: 79.2
- Product Length (mm):: 48.3
- Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (mm²):: .22 - 4
- Main Circuit Capacity - 1 Flexible Conductor per Screw Clamp (mm²):: .22 - 6
- Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (AWG):: 24 - 12
- Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (mm²):: .22 - 4
- Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (AWG):: 24 - 12
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (AWG):: 24 - 10
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²):: .2 - 6
- Main Circuit Capacity - 2 Flexible Conductors per Screw Clamp (mm²):: .2 - 2.5
- Main Circuit Capacity - Twin Ferrule per Screw Clamp (AWG):: 24 - 14
- Main Circuit Capacity - Twin Ferrule per Screw Clamp (mm²):: .22 - 2.5
- Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (AWG):: 24 - 14
- Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (mm²):: .2 - 2.5
- Wire Stripping Length :: 10.5 mm [ .413 in ]
- Tool Size :: 4 mm [ .157 in ]
- Product Depth (mm):: 48.3
- Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
- UL Flammability Rating :: UL 94V-0
- Ingress protection: IP20
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 6 mm [ .236 in ].
How is the terminal block mounted?
It is designed for DIN Rail mounting.
What IP rating does this terminal block have?
It has an ingress protection rating of IP20.
| Manufacturer Part Number | 1SNK506152R0000 |
|---|---|
| Height | 79.2mm |
| Width | 48.3mm |
| Depth | 48.3mm |
| Manufacturer | Entrelec |
| Packed Quantity | 25 |
| Barcode | 3472595061525 |
| Alternative Product SKU | ZS6-4S-PE Screw Clamp Green/Yellow |
