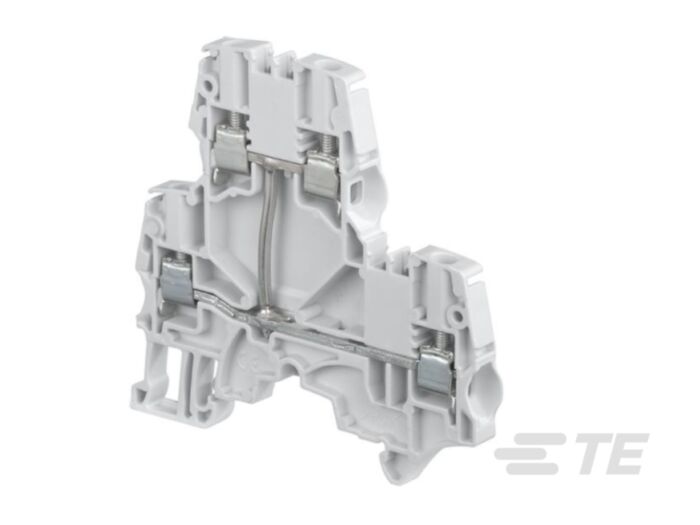

1snk505211r0000 - zs4-d1 [pk=50] grey double deck block
MPN: 1SNK505211R0000
Alt. SKU: ZS4-D1 [pk=50] Grey Double Deck Block
Special Price
£3.47
£2.89
Regular Price
£5.78
1snk505211r0000 - zs4-d1 [pk=50] grey double deck block is available to buy in increments of 1
Why Choose Control Panel Accessories?
High-quality accessories help maintain safety, improve installation efficiency, and ensure long-term reliability in electrical panels.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Block function: Feed-Through
- Product type: Screw Clamp Terminal Block
- Colour: Grey
- Pitch: 5.2 mm [ .205 in ]
- Number of positions: 4
- Number of Circuits :: 1
- Gauge Type :: A3-B3
- Number of Levels :: 2
- Short-Time Withstanding Current Rating @ 1s (A):: 480
- Voltage Rating (CSA) (V):: 300
- Voltage Rating (IEC) (V):: 800
- Dielectric Withstanding Voltage (Max) (V):: 2000
- Current Rating (CSA) (A):: 20
- Current Rating (UL) (A):: 20
- Current Rating (IEC) (A):: 29
- Impulse Withstanding Voltage Rating (IEC) (V):: 8000
- Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V):: 300
- Power Loss (W):: 1.9
- Operating Voltage (VAC):: 300
- Product Weight :: 15.3 g [ .602 oz ]
- Termination Method to Wire & Cable :: Screw Terminal
- Mounting: DIN Rail
- Housing material: Polyamide
- Main Circuit Capacity - 1 Flexible Conductor per Screw Clamp (AWG):: 24 - 12
- Product Height :: 70.4 mm [ 2.771 in ]
- Product Length :: 65.5 mm [ 2.58 in ]
- Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (mm²):: .22 - 2.5
- Main Circuit Capacity - 1 Flexible Conductor per Screw Clamp (mm²):: .22 - 4
- Main Circuit Capacity - 1 Insulated Ferrule per Screw Clamp (AWG):: 24 - 14
- Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (mm²):: .22 - 4
- Main Circuit Capacity - 1 Non-Insulated Ferrule per Screw Clamp (AWG):: 24 - 12
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (AWG):: 24 - 12
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²):: .2 - 4
- Main Circuit Capacity - 2 Flexible Conductors per Screw Clamp (AWG):: 24 - 16
- Main Circuit Capacity - 2 Flexible Conductors per Screw Clamp (mm²):: .2 - 1.5
- Main Circuit Capacity - Twin Ferrule per Screw Clamp (AWG):: 24 - 16
- Main Circuit Capacity - Twin Ferrule per Screw Clamp (mm²):: .22 - 1.5
- Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (AWG):: 24 - 16
- Main Circuit Capacity - 2 Rigid Stranded Conductors per Screw Clamp (mm²):: .2 - 1.5
- Wire Stripping Length :: 10 mm [ .394 in ]
- Tool Size :: 3.5 mm [ .138 in ]
- Product Depth :: 65.5 mm [ 2.579 in ]
- Wire Size (AWG):: 12
- Wire Size (mm²):: 4
- Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
- Circuit Application :: Power & Signal
- UL Flammability Rating :: UL 94V-0
- Ingress protection: IP20
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 5.2 mm [ .205 in ].
How is the terminal block mounted?
It is designed for DIN Rail mounting.
What IP rating does this terminal block have?
It has an ingress protection rating of IP20.
| Manufacturer Part Number | 1SNK505211R0000 |
|---|---|
| Height | 70.4mm |
| Width | 65.5mm |
| Depth | 65.5mm |
| Manufacturer | Entrelec |
| Packed Quantity | 1 |
| Barcode | 3472595052110 |
| Alternative Product SKU | ZS4-D1 [pk=50] Grey Double Deck Block |
