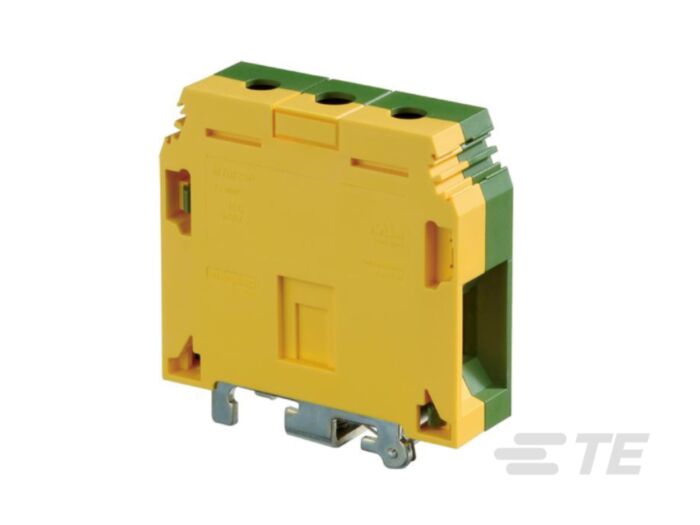

1sna400772r1300 - d70/22.p connection device - terminal
MPN: 1SNA400772R1300
Alt. SKU: D70/22.P CONNECTION DEVICE - TERMINAL
Special Price
£23.42
£19.52
Regular Price
£39.04
1sna400772r1300 - d70/22.p connection device - terminal is available to buy in increments of 10
Why Choose Terminal Blocks?
Terminal blocks provide secure, modular connections for managing electrical conductors within control panels and automation equipment. They simplify wiring, improve safety, and ensure reliable operation in industrial systems.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Block function: Ground
- Product type: Screw Clamp Terminal Block
- Colour: Green & Yellow
- Pitch: 22 mm [ .865 in ]
- Number of positions: 6
- Number of Circuits :: 1
- Number of Poles :: 2
- Gauge Type :: B11
- Number of Levels :: 1
- Short-Time Withstanding Current Rating @ 1s (A):: 8400
- Dielectric Withstanding Voltage (Max) (V):: 2200
- Impulse Withstanding Voltage Rating (IEC) (V):: 8000
- Product Weight (g):: 222
- Termination Method to Wire & Cable :: Screw Terminal
- Tightening Torque (in-lbs):: 52
- Tightening Torque (Nm):: 6
- Mounting: DIN Rail
- Housing material: Polyamide 6.6
- Product Height (mm):: 74
- Product Length (mm):: 68.8
- Product Width :: 22 mm [ .865 in ]
- Main Circuit Capacity - 1 Flexible Conductor per Spring Clamp (mm²):: 16 - 70
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (AWG):: 4 - 00
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²):: 16 - 95
- Wire Stripping Length :: 25 mm [ .984 in ]
- Tool Size :: 6 mm [ .236 in ]
- Product Depth (mm):: 68.8
- Wire Size (AWG):: 2/0
- Wire Size (mm²):: 70
- Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
- Circuit Application :: Power
- UL Flammability Rating :: UL 94V-0
- Ingress protection: IP10
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 22 mm [ .865 in ].
How is the terminal block mounted?
It is designed for DIN Rail mounting.
What IP rating does this terminal block have?
It has an ingress protection rating of IP10.
| Manufacturer Part Number | 1SNA400772R1300 |
|---|---|
| Height | 74mm |
| Width | 22mm |
| Depth | 68.8mm |
| Manufacturer | Entrelec |
| Packed Quantity | 10 |
| Barcode | 3472594007722 |
| Alternative Product SKU | D70/22.P CONNECTION DEVICE - TERMINAL |
