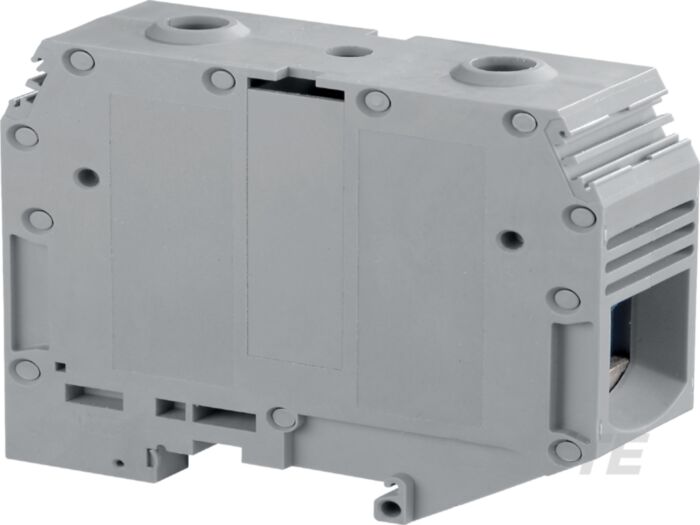

1sna400370r2400 - d95/26 95mm feedthrough terminal - grey
MPN: 1SNA400370R2400
Alt. SKU: D95/26 95mm feedthrough terminal - grey
Special Price
£17.16
£14.30
Regular Price
£28.61
1sna400370r2400 - d95/26 95mm feedthrough terminal - grey is available to buy in increments of 10
Why Choose Terminal Blocks?
Terminal blocks provide secure, modular connections for managing electrical conductors within control panels and automation equipment. They simplify wiring, improve safety, and ensure reliable operation in industrial systems.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Block function: Feed-Through
- Product type: Screw Clamp Terminal Block
- Colour: Grey
- Pitch: 26 mm [ 1.02 in ]
- Number of positions: 6
- Number of Circuits :: 1
- Number of Poles :: 2
- Gauge Type :: B12
- Number of Levels :: 1
- Short-Time Withstanding Current Rating @ 1s (A):: 11400
- Voltage Rating (CSA) (V):: 600
- Voltage Rating (IEC) (V):: 1000
- Current Rating (CSA) (A):: 230
- Current Rating (UL) (A):: 230
- Current Rating (IEC) (A):: 232
- Impulse Withstanding Voltage Rating (IEC) (V):: 8000
- Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V):: 600
- Operating Voltage (VAC):: 1000
- Product Weight :: 215 g [ 7.584 oz ]
- Termination Method to Wire & Cable :: Screw Terminal
- Tightening Torque (in-lbs):: 79.5
- Tightening Torque (Nm):: 9
- Mounting: DIN Rail
- Housing material: Polyamide 6.6
- Product Height :: 87 mm [ 3.425 in ]
- Product Length :: 72 mm [ 2.835 in ]
- Product Width (mm):: 26
- Main Circuit Capacity - 1 Flexible Conductor per Spring Clamp (mm²):: 35 - 95
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (AWG):: 2 - 0000
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²):: 35 - 120
- Wire Stripping Length :: 26 mm [ 1.024 in ]
- Product Depth :: 72 mm [ 2.835 in ]
- Wire Size (AWG):: 4/0
- Wire Size (mm²):: 95
- Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
- Circuit Application :: Power
- UL Flammability Rating :: UL 94V-0
- Ingress protection: IP10
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 26 mm [ 1.02 in ].
How is the terminal block mounted?
It is designed for DIN Rail mounting.
What IP rating does this terminal block have?
It has an ingress protection rating of IP10.
| Manufacturer Part Number | 1SNA400370R2400 |
|---|---|
| Height | 87mm |
| Width | 26mm |
| Depth | 72mm |
| Manufacturer | Entrelec |
| Packed Quantity | 10 |
| Barcode | 3472594003700 |
| Alternative Product SKU | D95/26 95mm feedthrough terminal - grey |
