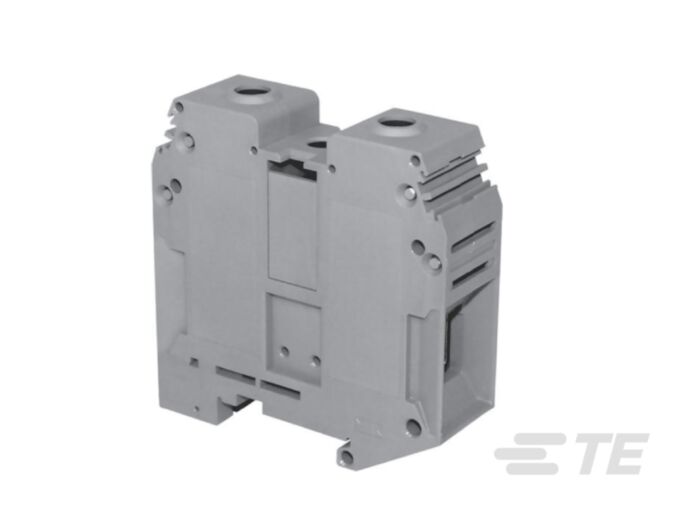

1sna400306r1100 - d70/22.n
MPN: 1SNA400306R1100
Alt. SKU: D70/22.N
Special Price
£11.47
£9.56
Regular Price
£19.12
1sna400306r1100 - d70/22.n is available to buy in increments of 10
Why Choose Control Panel Accessories?
High-quality accessories help maintain safety, improve installation efficiency, and ensure long-term reliability in electrical panels.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Block function: Feed-Through
- Product type: Screw Clamp Terminal Block
- Colour: Blue
- Pitch: 22 mm [ .865 in ]
- Number of positions: 6
- Number of Circuits :: 1
- Number of Poles :: 2
- Gauge Type :: B11
- Number of Levels :: 1
- Short-Time Withstanding Current Rating @ 1s (A):: 8400
- Voltage Rating (CSA) (V):: 600
- Voltage Rating (IEC) (V):: 1000
- Dielectric Withstanding Voltage (Max) (V):: 2200
- Current Rating (CSA) (A):: 159
- Current Rating (UL) (A):: 159
- Current Rating (IEC) (A):: 192
- Impulse Withstanding Voltage Rating (IEC) (V):: 8000
- Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V):: 600
- Operating Voltage (VAC):: 1000
- Product Weight (g):: 158.1
- Termination Method to Wire & Cable :: Screw Terminal
- Tightening Torque (in-lbs):: 53.4
- Tightening Torque (Nm):: 6
- Mounting: DIN Rail
- Housing material: Polyamide 6.6
- Product Height (mm):: 74
- Product Length (mm):: 75.4
- Product Width :: 22 mm [ .865 in ]
- Main Circuit Capacity - 1 Flexible Conductor per Spring Clamp (mm²):: 16 - 70
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (AWG):: 4 - 00
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²):: 16 - 95
- Wire Stripping Length :: 25 mm [ .984 in ]
- Tool Size :: 6 mm [ .236 in ]
- Product Depth (mm):: 75.4
- Wire Size (AWG):: 2/0
- Wire Size (mm²):: 70
- Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
- Circuit Application :: Power
- UL Flammability Rating :: UL 94V-0
- Ingress protection: IP20
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 22 mm [ .865 in ].
How is the terminal block mounted?
It is designed for DIN Rail mounting.
What IP rating does this terminal block have?
It has an ingress protection rating of IP20.
| Manufacturer Part Number | 1SNA400306R1100 |
|---|---|
| Height | 74mm |
| Width | 22mm |
| Depth | 75.4mm |
| Manufacturer | Entrelec |
| Packed Quantity | 10 |
| Barcode | 3472594003069 |
| Alternative Product SKU | D70/22.N |
