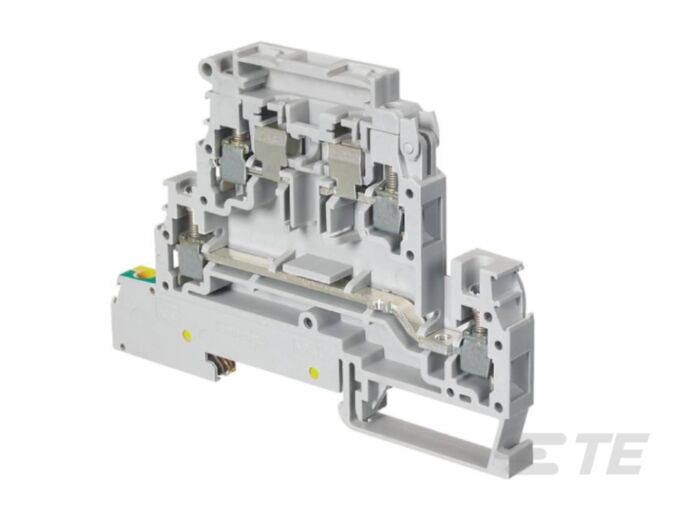

1sna400270r2000 - d4/8.d2.p.sf
MPN: 1SNA400270R2000
Alt. SKU: D4/8.D2.P.SF
Special Price
£6.35
£5.29
Regular Price
£10.58
1sna400270r2000 - d4/8.d2.p.sf is available to buy in increments of 25
Why Choose Double-Deck Terminal Blocks?
Double-deck terminal blocks offer two connection levels in a single footprint, saving panel space and enabling efficient wiring in high-density applications like automation and process control systems.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Block function: Fuse
- Product type: Screw Clamp Terminal Block
- Colour: Grey
- Pitch: 8 mm [ .314 in ]
- Number of positions: 6
- Number of Circuits :: 3
- Number of Poles :: 5
- Gauge Type :: A4
- Number of Levels :: 2
- Voltage Rating (CSA) (V):: 300
- Voltage Rating (IEC) (V):: 300
- Current Rating (CSA) (A):: 6.3
- Current Rating (UL) (A):: 6.3
- Current Rating (IEC) (A):: 6.3
- Impulse Withstanding Voltage Rating (IEC) (V):: 6000
- Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V):: 300
- Operating Voltage (VAC):: 300
- Product Weight (g):: 35
- Termination Method to Wire & Cable :: Screw Terminal
- Tightening Torque (in-lbs):: 4.4
- Tightening Torque (Nm):: .5
- Terminal Block Disconnect Type :: Lever
- Mounting: DIN Rail
- Housing material: Polyamide 6.6
- Product Height (mm):: 99.1
- Product Length (mm):: 64.5
- Product Width :: 8 mm [ .314 in ]
- Main Circuit Capacity - 1 Flexible Conductor per Spring Clamp (mm²):: .5 - 4
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²):: .5 - 6
- Wire Stripping Length :: 9.5 mm [ .374 in ]
- Tool Size :: 4 mm [ .157 in ]
- Product Depth (mm):: 64.5
- Wire Size (AWG):: 12
- Wire Size (mm²):: 4
- Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
- Circuit Application :: Signal
- UL Flammability Rating :: UL 94V-0
- Ingress protection: IP20
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 8 mm [ .314 in ].
How is the terminal block mounted?
It is designed for DIN Rail mounting.
What IP rating does this terminal block have?
It has an ingress protection rating of IP20.
| Manufacturer Part Number | 1SNA400270R2000 |
|---|---|
| Height | 99.1mm |
| Width | 8mm |
| Depth | 64.5mm |
| Manufacturer | Entrelec |
| Packed Quantity | 25 |
| Barcode | 3472594002703 |
| Alternative Product SKU | D4/8.D2.P.SF |
