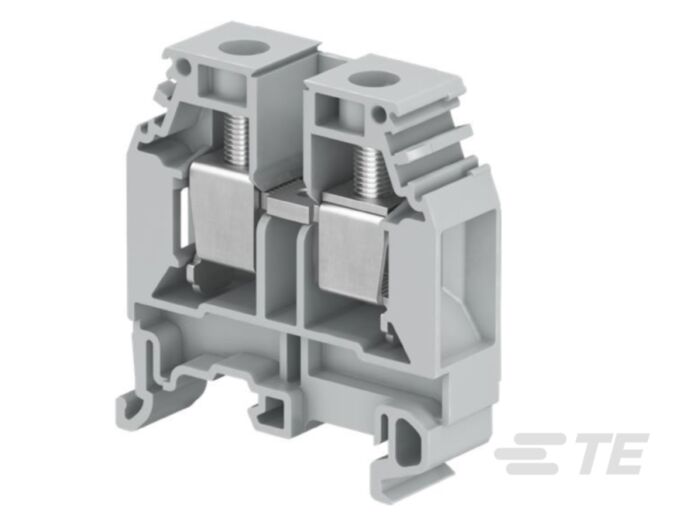

1sna400192r2700 - bloc m16/12 rouge vo
MPN: 1SNA400192R2700
Alt. SKU: BLOC M16/12 ROUGE VO
Special Price
£1.80
£1.50
Regular Price
£3.00
1sna400192r2700 - bloc m16/12 rouge vo is available to buy in increments of 20
Why Choose Control Panel Accessories?
High-quality accessories help maintain safety, improve installation efficiency, and ensure long-term reliability in electrical panels.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Block function: Feed-Through
- Product type: Screw Clamp Terminal Block
- Colour: Red
- Pitch: 12 mm [ .471 in ]
- Number of positions: 2
- Number of Circuits :: 1
- Number of Poles :: 2
- Gauge Type :: B7
- Number of Levels :: 1
- Short-Time Withstanding Current Rating @ 1s (A):: 1920
- Voltage Rating (CSA) (V):: 600
- Voltage Rating (IEC) (V):: 1000
- Dielectric Withstanding Voltage (Max) (V):: 2000
- Current Rating (CSA) (A):: 85
- Current Rating (UL) (A):: 85
- Current Rating (IEC) (A):: 76
- Impulse Withstanding Voltage Rating (IEC) (V):: 8000
- Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V):: 600
- Operating Voltage (VAC):: 1000
- Product Weight :: 26.1 g [ .921 oz ]
- Termination Method to Wire & Cable :: Screw Terminal
- Tightening Torque (in-lbs):: 10.6
- Tightening Torque (Nm):: 1.2
- Mounting: DIN Rail
- Housing material: Polyamide 6.6
- Product Height (mm):: 45.5
- Product Length (mm):: 40.5
- Product Width :: 12 mm [ .471 in ]
- Main Circuit Capacity - 1 Flexible Conductor per Spring Clamp (mm²):: 2.5 - 16
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²):: 2.5 - 25
- Wire Stripping Length :: 14 mm [ .55 in ]
- Tool Size :: 5.5 mm [ .217 in ]
- Product Depth (mm):: 40.5
- Wire Size (AWG):: 6
- Wire Size (mm²):: 16
- Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
- Circuit Application :: Signal
- UL Flammability Rating :: UL 94V-0
- Ingress protection: IP20
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 12 mm [ .471 in ].
How is the terminal block mounted?
It is designed for DIN Rail mounting.
What IP rating does this terminal block have?
It has an ingress protection rating of IP20.
| Manufacturer Part Number | 1SNA400192R2700 |
|---|---|
| Height | 45.5mm |
| Width | 12mm |
| Depth | 40.5mm |
| Manufacturer | Entrelec |
| Packed Quantity | 20 |
| Barcode | 3472594001928 |
| Alternative Product SKU | BLOC M16/12 ROUGE VO |
