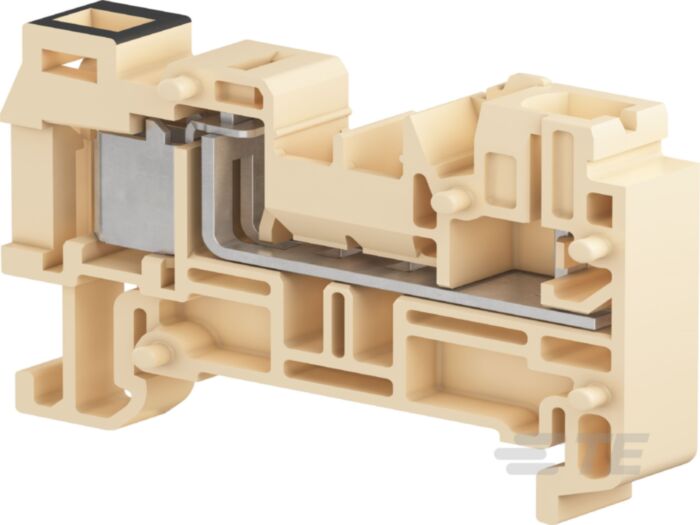

1sna400156r0200 - d2,5/7,ado-cpe,nf1
MPN: 1SNA400156R0200
Alt. SKU: D2,5/7,ADO-CPE,NF1
Special Price
£1.46
£1.22
Regular Price
£2.45
1sna400156r0200 - d2,5/7,ado-cpe,nf1 is available to buy in increments of 50
Why Choose Double-Deck Terminal Blocks?
Double-deck terminal blocks offer two connection levels in a single footprint, saving panel space and enabling efficient wiring in high-density applications like automation and process control systems.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Block function: Feed-Through
- Product type: Pluggable Terminal Block
- Colour: Beige
- Pitch: 7.62 mm [ .3 in ]
- Number of positions: 1
- Number of Circuits :: 1
- Number of Levels :: 1
- Short-Time Withstanding Current Rating @ 1s (A):: 180
- Voltage Rating (NF F 61-017) (V):: 500
- Current Rating (NF F 61-017) (A):: 16
- Voltage Rating (IEC) (V):: 500
- Current Rating (IEC) (A):: 24
- Operating Voltage (VAC):: 500
- Product Weight :: 8.4 g [ .296 oz ]
- Contact Current Rating (Max) (A):: 24
- Termination Method to Wire & Cable :: Insulation Displacement (IDC)
- Terminal Block Disconnect Type :: Plug
- Mounting: DIN Rail
- Housing material: Polyamide
- Product Height :: 48.5 mm [ 1.909 in ]
- Product Length :: 29 mm [ 1.141 in ]
- Product Depth :: 29 mm [ 1.141 in ]
- Product Width :: 7.6 mm [ .299 in ]
- Wire Size (AWG):: 14
- Wire Size (mm²):: 2.5
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
- Ingress protection: IP20
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 7.62 mm [ .3 in ].
How is the terminal block mounted?
It is designed for DIN Rail mounting.
What IP rating does this terminal block have?
It has an ingress protection rating of IP20.
| Manufacturer Part Number | 1SNA400156R0200 |
|---|---|
| Height | 48.5mm |
| Width | 7.6mm |
| Depth | 29mm |
| Manufacturer | Entrelec |
| Packed Quantity | 50 |
| Barcode | 3472594001560 |
| Alternative Product SKU | D2,5/7,ADO-CPE,NF1 |
