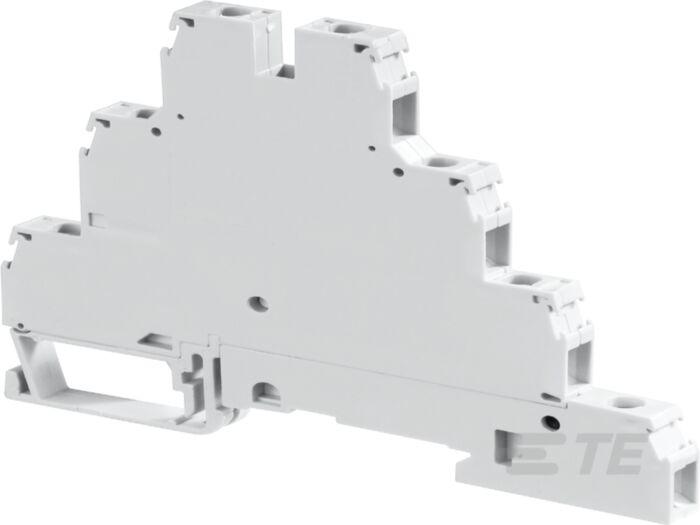

1sna299683r0100 - d4/6 t3 gris
MPN: 1SNA299683R0100
Alt. SKU: D4/6 T3 GRIS
Special Price
£5.11
£4.26
Regular Price
£8.53
1sna299683r0100 - d4/6 t3 gris is available to buy in increments of 25
Why Choose Control Panel Accessories?
High-quality accessories help maintain safety, improve installation efficiency, and ensure long-term reliability in electrical panels.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Block function: Feed-Through
- Product type: Screw Clamp Terminal Block
- Colour: Grey
- Pitch: 6 mm [ .235 in ]
- Number of positions: 6
- Number of Circuits :: 3
- Number of Poles :: 6
- Gauge Type :: A4
- Number of Levels :: 3
- Short-Time Withstanding Current Rating @ 1s (A):: 480
- Voltage Rating (IEC) (V):: 500
- Current Rating (UL) (A):: 20
- Current Rating (IEC) (A):: 32
- Impulse Withstanding Voltage Rating (IEC) (V):: 6000
- Operating Voltage Rating (UL & CSA) (Max) - Main Circuit (V):: 300
- Operating Voltage (VAC):: 500
- Product Weight :: 27 g [ .952 oz ]
- Termination Method to Wire & Cable :: Screw Terminal
- Tightening Torque (in-lbs):: 4.4
- Tightening Torque (Nm):: .5
- Mounting: DIN Rail
- Housing material: Polyamide 6.6
- Product Height :: 90 mm [ 3.543 in ]
- Product Length :: 64.5 mm [ 2.539 in ]
- Product Width :: 6 mm [ .235 in ]
- Main Circuit Capacity - 1 Flexible Conductor per Spring Clamp (mm²):: .22 - 4
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²):: .2 - 4
- Wire Stripping Length :: 9.5 mm [ .374 in ]
- Tool Size :: 4 mm [ .157 in ]
- Product Depth :: 64.5 mm [ 2.539 in ]
- Wire Size (AWG):: 12
- Wire Size (mm²):: 4
- Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
- Circuit Application :: Signal
- UL Flammability Rating :: UL 94V-0
- Ingress protection: IP20
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 6 mm [ .235 in ].
How is the terminal block mounted?
It is designed for DIN Rail mounting.
What IP rating does this terminal block have?
It has an ingress protection rating of IP20.
| Manufacturer Part Number | 1SNA299683R0100 |
|---|---|
| Height | 90mm |
| Width | 6mm |
| Depth | 64.5mm |
| Manufacturer | Entrelec |
| Packed Quantity | 25 |
| Barcode | 3472592996837 |
| Alternative Product SKU | D4/6 T3 GRIS |
