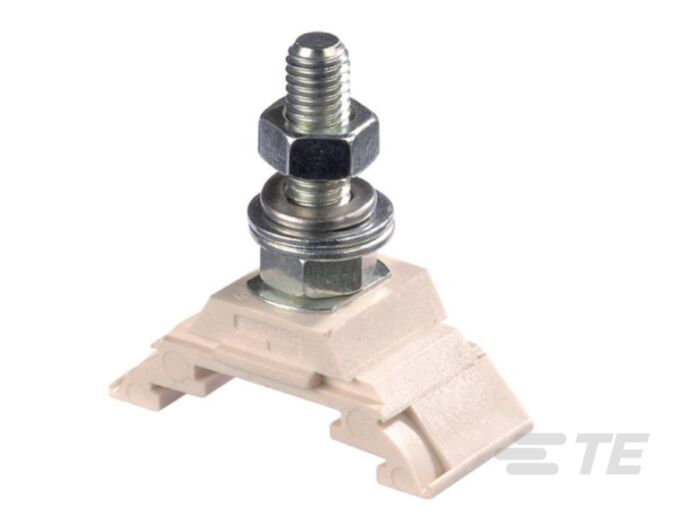

1sna295401r2300 - hd70/22.f8.31.1 m8 steel

Why Choose Control Panel Accessories?

High-quality accessories help maintain safety, improve installation efficiency, and ensure long-term reliability in electrical panels.

Integration

Designed for use in electrical panels and automation systems where reliability and modularity are essential.

What Customers Say

“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead

Key Features

• Industrial-grade durability
• Consistent and safe operation
• Optimised for control panel use
• Compatible with common DIN rail configurations

Comparison with Similar Products

This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.

Technical Specifications

• Block function: Feed-Through
• Product type: Stud Terminal Block
• Colour: Beige
• Pitch: 22 mm [ .866 in ]
• Number of positions: 1
• Number of Levels :: 1
• Short-Time Withstanding Current Rating @ 1s (A):: 8400
• Voltage Rating (NFC) (VAC):: 750
• Voltage Rating (NFC) (VDC):: 750
• Current Rating (NFC) (A):: 192
• Operating Voltage (VAC):: 750
• Product Weight :: 39 g [ 1.375 oz ]
• Contact Current Rating (Max) (A):: 192
• Termination Method to Wire & Cable :: Screw Terminal
• Tightening Torque (in-lbs):: 53.1
• Tightening Torque (Nm):: 6
• Mounting: DIN Rail
• Housing material: Polyamide
• Product Height :: 50 mm [ 1.968 in ]
• Product Length :: 46 mm [ 1.811 in ]
• Product Depth :: 46 mm [ 1.811 in ]
• Product Width :: 22 mm [ .866 in ]
• Wire Size (NFC) (mm²):: 70
• Wire Size (AWG):: 1/0
• Wire Size (mm²):: 70
• Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
• UL Flammability Rating :: UL 94V-0
