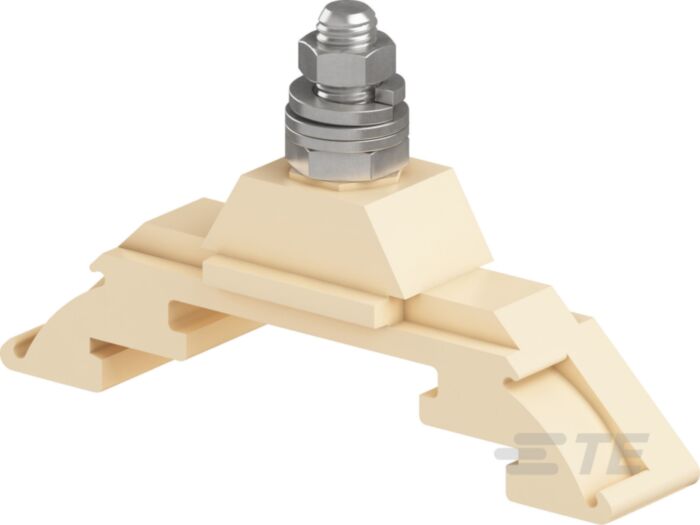

1sna295392r2100 - hd4/9.f4.2 m4 stud terminal
MPN: 1SNA295392R2100
Alt. SKU: HD4/9.F4.2 M4 STUD TERMINAL
Special Price
£1.87
£1.56
Regular Price
£3.12
This product replaces this item:
1sna295392r2100 - hd4/9.f4.2 m4 stud terminal is available to buy in increments of 100
Why Choose Terminal Blocks?
Terminal blocks provide secure, modular connections for managing electrical conductors within control panels and automation equipment. They simplify wiring, improve safety, and ensure reliable operation in industrial systems.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Block function: Feed-Through
- Product type: Stud Terminal Block
- Colour: Beige
- Pitch: 9.5 mm [ .374 in ]
- Number of positions: 1
- Number of Levels :: 1
- Short-Time Withstanding Current Rating @ 1s (A):: 480
- Voltage Rating (NFC) (VAC):: 500
- Voltage Rating (NFC) (VDC):: 500
- Current Rating (NFC) (A):: 32
- Operating Voltage (VAC):: 500
- Product Weight :: 6 g [ .211 oz ]
- Contact Current Rating (Max) (A):: 32
- Termination Method to Wire & Cable :: Screw Terminal
- Tightening Torque (in-lbs):: 10.6
- Tightening Torque (Nm):: 1.2
- Mounting: DIN Rail
- Housing material: Polyamide
- Product Height :: 50 mm [ 1.968 in ]
- Product Length :: 28 mm [ 1.102 in ]
- Product Depth :: 28 mm [ 1.102 in ]
- Product Width :: 9.5 mm [ .374 in ]
- Wire Size (NFC) (mm²):: 4
- Wire Size (AWG):: 12
- Wire Size (mm²):: 4
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
- UL Flammability Rating :: UL 94V-0
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 9.5 mm [ .374 in ].
How is the terminal block mounted?
It is designed for DIN Rail mounting.
| Manufacturer Part Number | 1SNA295392R2100 |
|---|---|
| Height | 50mm |
| Width | 9.5mm |
| Depth | 28mm |
| Manufacturer | Entrelec |
| Packed Quantity | 100 |
| Barcode | 3472592953922 |
| Alternative Product SKU | HD4/9.F4.2 M4 STUD TERMINAL |
