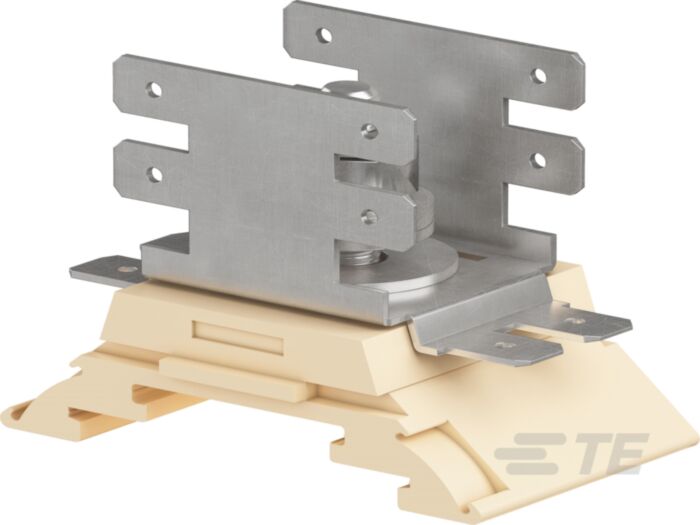

1sna295015r1200 - hd6/30.f12g m6 stud to 12 faston
MPN: 1SNA295015R1200
Alt. SKU: HD6/30.F12G M6 stud to 12 Faston
Special Price
£11.23
£9.36
Regular Price
£18.72
This product replaces this item:
1sna295015r1200 - hd6/30.f12g m6 stud to 12 faston is available to buy in increments of 10
Why Choose Control Panel Accessories?
High-quality accessories help maintain safety, improve installation efficiency, and ensure long-term reliability in electrical panels.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Block function: Feed-Through
- Product type: Stud Terminal Block
- Colour: Beige
- Pitch: 30 mm [ 1.181 in ]
- Number of positions: 13
- Number of Circuits :: 1
- Number of Levels :: 1
- Current Rating (NF F 61-017) (A):: 155 | 16
- Voltage Rating (NFC) (VAC):: 750
- Voltage Rating (NFC) (VDC):: 900
- Voltage Rating (NF F 61-017) (VAC):: 380
- Voltage Rating (NF F 61-017) (VDC):: 500
- Voltage Rating (DIN) (VAC):: 750
- Voltage Rating (DIN) (V):: 750
- Operating Voltage (VAC):: 750
- Product Weight :: 42 g [ 1.481 oz ]
- Contact Current Rating (Max) (A):: 155
- Termination Method to Wire & Cable :: Quick Connect | Screw Terminal
- Tightening Torque (in-lbs):: 46.9
- Tightening Torque (Nm):: 5.3
- Mounting: DIN Rail
- Housing material: Polyamide
- Product Height :: 50 mm [ 1.968 in ]
- Product Length :: 39.4 mm [ 1.551 in ]
- Product Depth :: 39.4 mm [ 1.551 in ]
- Product Width :: 30 mm [ 1.181 in ]
- Wire Size (NFC) (mm²):: 35
- Wire Size (AWG):: 10
- Wire Size (mm²):: 35
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 30 mm [ 1.181 in ].
How is the terminal block mounted?
It is designed for DIN Rail mounting.
| Manufacturer Part Number | 1SNA295015R1200 |
|---|---|
| Height | 50mm |
| Width | 30mm |
| Depth | 39.4mm |
| Manufacturer | Entrelec |
| Packed Quantity | 10 |
| Barcode | 3472592950150 |
| Alternative Product SKU | HD6/30.F12G M6 stud to 12 Faston |
