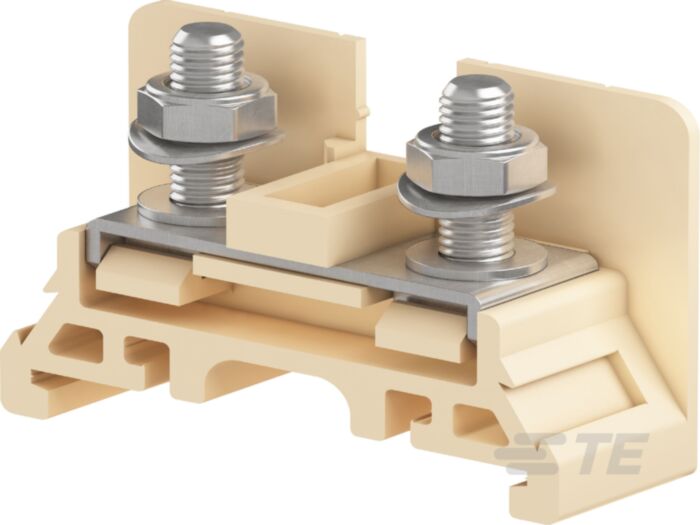

1sna295014r1100 - hd6/13.ff4 2xm5 stud with interrupt bar
MPN: 1SNA295014R1100
Alt. SKU: HD6/13.FF4 2xM5 stud with interrupt bar
Special Price
£3.72
£3.10
Regular Price
£6.19
This product replaces this item:
1sna295014r1100 - hd6/13.ff4 2xm5 stud with interrupt bar is available to buy in increments of 10
Why Choose Control Panel Accessories?
High-quality accessories help maintain safety, improve installation efficiency, and ensure long-term reliability in electrical panels.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Block function: Feed-Through
- Product type: Stud Terminal Block
- Colour: Beige
- Pitch: 13 mm [ .511 in ]
- Number of positions: 2
- Number of Levels :: 1
- Current Rating (DIN) (A):: 47
- Current Rating (NF F 61-017) (A):: 51
- Voltage Rating (NFC) (VAC):: 400
- Voltage Rating (NFC) (VDC):: 250
- Voltage Rating (NF F 61-017) (VAC):: 380
- Voltage Rating (NF F 61-017) (VDC):: 380
- Voltage Rating (DIN) (VAC):: 380
- Voltage Rating (DIN) (V):: 450
- Current Rating (NFC) (A):: 51
- Operating Voltage (VAC):: 400
- Product Weight :: 15 g [ .529 oz ]
- Contact Current Rating (Max) (A):: 51
- Termination Method to Wire & Cable :: Screw Terminal
- Tightening Torque (in-lbs):: 10.6
- Tightening Torque (Nm):: 1.2
- Mounting: DIN Rail
- Housing material: Polyamide
- Product Height :: 40 mm [ 1.574 in ]
- Product Length :: 30 mm [ 1.181 in ]
- Product Depth :: 30 mm [ 1.181 in ]
- Product Width :: 13 mm [ .511 in ]
- Wire Size (NFC) (mm²):: 6
- Wire Size (AWG):: 10
- Wire Size (mm²):: 6
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
- Circuit Application :: Power
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 13 mm [ .511 in ].
How is the terminal block mounted?
It is designed for DIN Rail mounting.
| Manufacturer Part Number | 1SNA295014R1100 |
|---|---|
| Height | 40mm |
| Width | 13mm |
| Depth | 30mm |
| Manufacturer | Entrelec |
| Packed Quantity | 10 |
| Barcode | 3472592950143 |
| Alternative Product SKU | HD6/13.FF4 2xM5 stud with interrupt bar |
