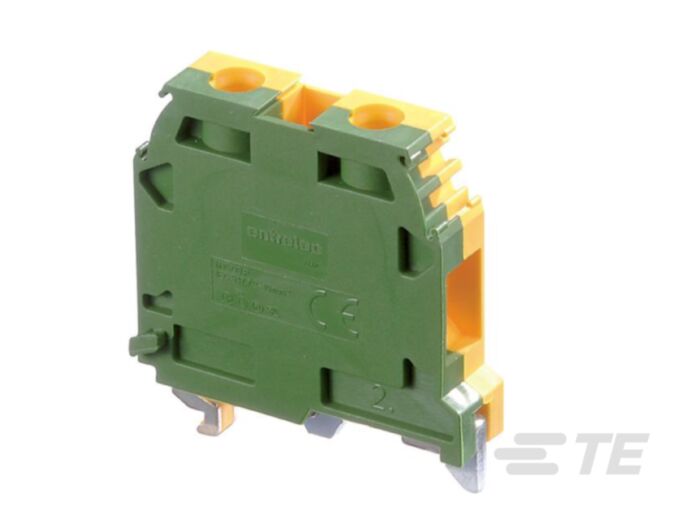

1sna165115r1000 - m10/10.p ground terminal g/y.

Integration

Designed for use in electrical panels and automation systems where reliability and modularity are essential.

What Customers Say

“Reliable quality and easy installation — a must-have in every panel we build.” – Panel Assembly Lead

Key Features

• Industrial-grade durability
• Consistent and safe operation
• Optimized for control panel use
• Compatible with common DIN rail configurations

Comparison with Similar Products

This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.

Technical Specifications

• Block function: Ground
• Product type: Screw Clamp Terminal Block
• Colour: Green & Yellow
• Pitch: 10 mm [ .393 in ]
• Number of positions: 2
• Number of Circuits: 1
• Number of Poles: 2
• Gauge Type: B6
• Number of Levels: 1
• Short-Time Withstanding Current Rating @ 1s (A): 1200
• Product Weight: 29 g [ 1.023 oz ]
• Termination Method to Wire & Cable: Screw Terminal
• Tightening Torque (in-lbs): 10.6
• Tightening Torque (Nm): 1.2
• Mounting: DIN Rail
• Housing material: Polyamide 6.6
• Product Height: 43.5 mm [ 1.712 in ]
• Product Length: 40.5 mm [ 1.594 in ]
• Product Width: 10 mm [ .393 in ]
• Main Circuit Capacity - 1 Flexible Conductor per Spring Clamp (mm²): .5 – 10
• Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²): .5 – 16
• Wire Stripping Length: 12 mm [ .472 in ]
• Product Depth: 40.5 mm [ 1.594 in ]
• Wire Size (AWG): 6
• Wire Size (mm²): 10
• Installation Temperature Range: -5 – 40 °C [ 23 – 104 °F ]
• Operating temperature range: -55 – 110 °C [ -67 – 230 °F ]
• Circuit Application: Signal
• UL Flammability Rating: UL 94V-0
