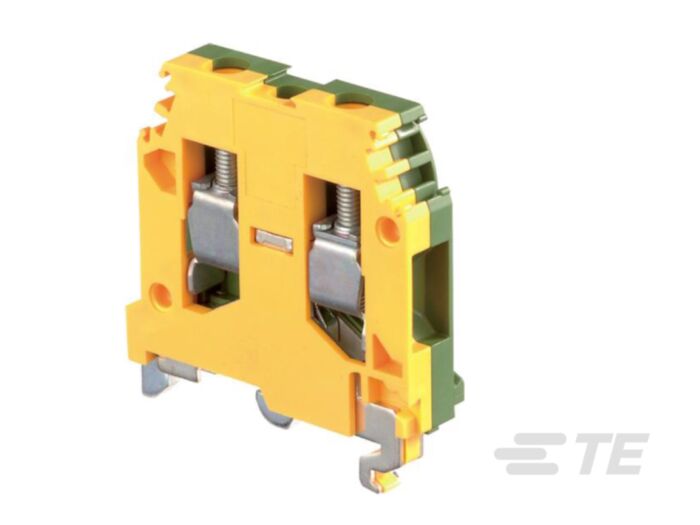

1sna165114r1700 - m6/8.p earth terminal 6mm

Why Choose Earth Terminal Blocks?

Earth terminal blocks ensure safe and reliable grounding in electrical enclosures, protecting equipment and personnel. They are essential for meeting grounding regulations in control panels.

Integration

Designed for use in electrical panels and automation systems where reliability and modularity are essential.

What Customers Say

“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead

Key Features

• Industrial-grade durability
• Consistent and safe operation
• Optimised for control panel use
• Compatible with common DIN rail configurations

Comparison with Similar Products

This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.

Technical Specifications

• Block function: Ground
• Product type: Screw Clamp Terminal Block
• Colour: Green & Yellow
• Pitch: 8 mm [ .314 in ]
• Number of positions: 2
• Number of Circuits :: 1
• Number of Poles :: 2
• Gauge Type :: A5
• Number of Levels :: 1
• Short-Time Withstanding Current Rating @ 1s (A):: 720
• Product Weight :: 26 g [ .917 oz ]
• Termination Method to Wire & Cable :: Screw Terminal
• Tightening Torque (in-lbs):: 7.1
• Tightening Torque (Nm):: .8
• Mounting: DIN Rail
• Housing material: Polyamide 6.6
• Product Height :: 43.5 mm [ 1.712 in ]
• Product Length :: 40.5 mm [ 1.594 in ]
• Product Width :: 8 mm [ .314 in ]
• Main Circuit Capacity - 1 Flexible Conductor per Spring Clamp (mm²):: .5 - 6
• Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²):: .5 - 10
• Wire Stripping Length :: 12 mm [ .472 in ]
• Product Depth :: 40.5 mm [ 1.594 in ]
• Wire Size (AWG):: 8
• Wire Size (mm²):: 6
• Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
• Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
• Circuit Application :: Signal
• UL Flammability Rating :: UL 94V-0
