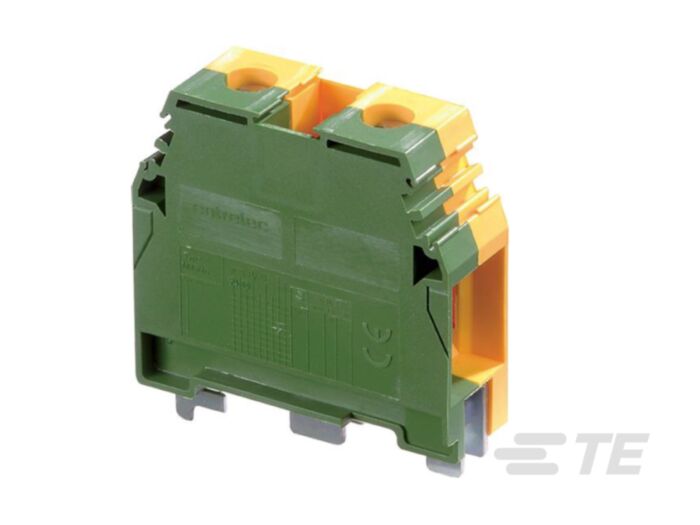

1sna165111r1400 - m35/16.p ground terminal g/y
MPN: 1SNA165111R1400
Alt. SKU: M35/16.P GROUND TERMINAL G/Y
Special Price
£6.14
£5.12
Regular Price
£10.25
1sna165111r1400 - m35/16.p ground terminal g/y is available to buy in increments of 20
Why Choose Terminal Blocks?
Terminal blocks provide secure, modular connections for managing electrical conductors within control panels and automation equipment. They simplify wiring, improve safety, and ensure reliable operation in industrial systems.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Block function: Ground
- Product type: Screw Clamp Terminal Block
- Colour: Green & Yellow
- Pitch: 16 mm [ .629 in ]
- Number of positions: 2
- Number of Circuits :: 1
- Number of Poles :: 2
- Gauge Type :: B9
- Number of Levels :: 1
- Short-Time Withstanding Current Rating @ 1s (A):: 4200
- Dielectric Withstanding Voltage (Max) (V):: 3500
- Product Weight :: 50.5 g [ 1.781 oz ]
- Termination Method to Wire & Cable :: Screw Terminal
- Tightening Torque (in-lbs):: 24.9
- Tightening Torque (Nm):: 2.8
- Mounting: DIN Rail
- Housing material: Polyamide 6.6
- Product Height :: 49 mm [ 1.929 in ]
- Product Length :: 46.5 mm [ 1.831 in ]
- Product Width :: 16 mm [ .629 in ]
- Main Circuit Capacity - 1 Flexible Conductor per Spring Clamp (mm²):: 4 - 35
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (AWG):: 10 - 0
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²):: 6 - 50
- Wire Stripping Length :: 17 mm [ .669 in ]
- Product Depth :: 46.5 mm [ 1.831 in ]
- Wire Size (AWG):: 1/0
- Wire Size (mm²):: 35
- Installation Temperature Range :: -5 - 40 °C [ 23 - 104 °F ]
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
- Circuit Application :: Signal
- UL Flammability Rating :: UL 94V-0
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 16 mm [ .629 in ].
How is the terminal block mounted?
It is designed for DIN Rail mounting.
| Manufacturer Part Number | 1SNA165111R1400 |
|---|---|
| Height | 49mm |
| Width | 16mm |
| Depth | 46.5mm |
| Manufacturer | Entrelec |
| Packed Quantity | 20 |
| Barcode | 3472591651119 |
| Alternative Product SKU | M35/16.P GROUND TERMINAL G/Y |
