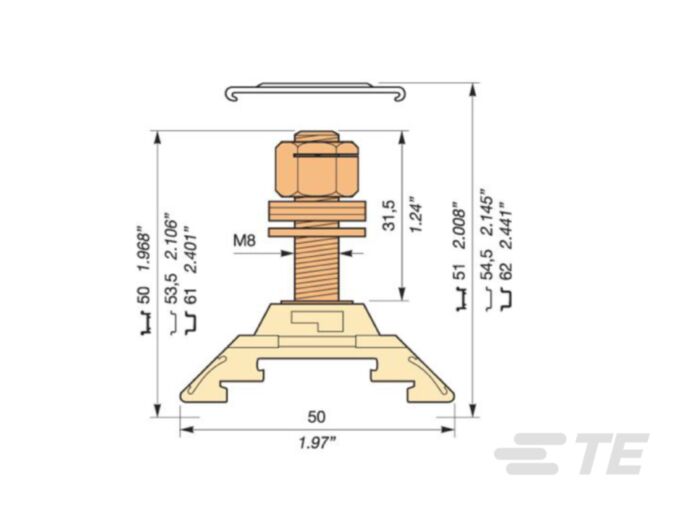

1sna162975r2300 - h70/22.f8.31 stud terminal

Why Choose Terminal Blocks?

Terminal blocks provide secure, modular connections for managing electrical conductors within control panels and automation equipment. They simplify wiring, improve safety, and ensure reliable operation in industrial systems.

Integration

Designed for use in electrical panels and automation systems where reliability and modularity are essential.

What Customers Say

“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead

Key Features

• Industrial-grade durability
• Consistent and safe operation
• Optimised for control panel use
• Compatible with common DIN rail configurations

Comparison with Similar Products

This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.

Technical Specifications

• Block function: Feed-Through
• Product type: Stud Terminal Block
• Colour: Beige
• Pitch: 22 mm [ .866 in ]
• Number of positions: 2
• Number of Levels :: 1
• Product Weight :: 39 g [ 1.375 oz ]
• Termination Method to Wire & Cable :: Screw Terminal
• Tightening Torque (in-lbs):: 118.6
• Tightening Torque (Nm):: 13.4
• Mounting: DIN Rail
• Housing material: Polyamide
• Product Height :: 38 mm [ 1.496 in ]
• Product Length :: 39.5 mm [ 1.555 in ]
• Product Depth :: 39.5 mm [ 1.555 in ]
• Product Width :: 22 mm [ .866 in ]
• Wire Size (AWG):: 1/0
• Wire Size (mm²):: 70
• Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
• UL Flammability Rating :: UL 94V-0
