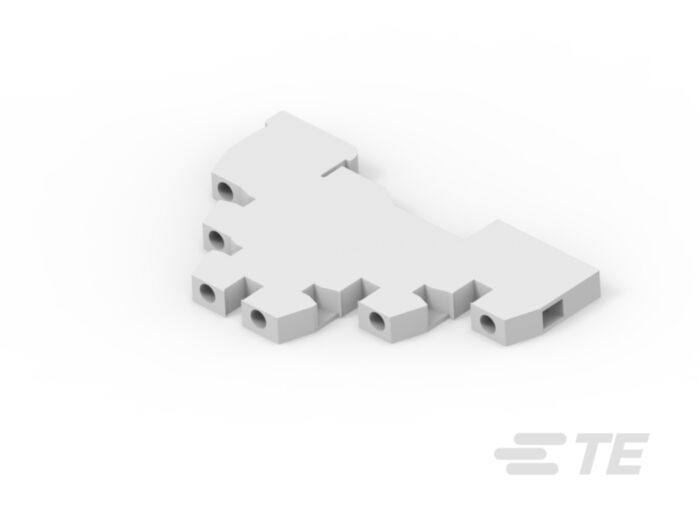

1sna115642r2600 - d2,5/6,dpal1
MPN: 1SNA115642R2600
Alt. SKU: D2,5/6,DPAL1
Special Price
£5.74
£4.78
Regular Price
£9.55
1sna115642r2600 - d2,5/6,dpal1 is available to buy in increments of 25
Why Choose Double-Deck Terminal Blocks?
Double-deck terminal blocks offer two connection levels in a single footprint, saving panel space and enabling efficient wiring in high-density applications like automation and process control systems.
Integration
Designed for use in electrical panels and automation systems where reliability and modularity are essential.
What Customers Say
“Reliable quality and easy installation - a must-have in every panel we build.” - Panel Assembly Lead
Key Features
- Industrial-grade durability
- Consistent and safe operation
- Optimised for control panel use
- Compatible with common DIN rail configurations
Comparison with Similar Products
This product offers better performance, ease of use, and reliability compared to general-purpose alternatives.
Technical Specifications
- Block function: Feed-Through
- Product type: Screw Clamp Terminal Block
- Colour: Grey | Green & Yellow
- Pitch: 6 mm [ .236 in ]
- Number of positions: 5
- Gauge Type :: A2
- Number of Levels :: 3
- Short-Time Withstanding Current Rating @ 1s (A):: 300
- Voltage Rating (IEC) (V):: 380
- Current Rating (IEC) (A):: 22
- Operating Voltage (VAC):: 380
- Product Weight :: 16 g [ .564 oz ]
- Contact Current Rating (Max) (A):: 22
- Termination Method to Wire & Cable :: Screw Terminal
- Tightening Torque (in-lbs):: 5.31
- Tightening Torque (Nm):: .6
- Mounting: DIN Rail
- Housing material: Polyamide
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (mm²):: .2 - 2.5
- Wire Stripping Length :: 6 mm [ .24 in ]
- Product Height :: 81 mm [ 3.188 in ]
- Product Length :: 43.5 mm [ 1.712 in ]
- Product Depth :: 43.5 mm [ 1.712 in ]
- Product Width :: 6 mm [ .236 in ]
- Main Circuit Capacity - 1 Flexible Conductor per Screw Clamp (mm²):: .22 - 2.5
- Main Circuit Capacity - 1 Rigid Stranded Conductor per Screw Clamp (AWG):: 24 - 12
- Wire Size (AWG):: 12
- Wire Size (mm²):: 2.5
- Operating temperature range: -55 - 110 °C [ -67 - 230 °F ]
- Circuit Application :: Power & Signal
- UL Flammability Rating :: UL 94V-0
- Ingress protection: IP20
Frequently Asked Questions
What is the terminal spacing?
The pitch between terminals is 6 mm [ .236 in ].
How is the terminal block mounted?
It is designed for DIN Rail mounting.
What IP rating does this terminal block have?
It has an ingress protection rating of IP20.
| Manufacturer Part Number | 1SNA115642R2600 |
|---|---|
| Height | 81mm |
| Width | 6mm |
| Depth | 43.5mm |
| Manufacturer | Entrelec |
| Packed Quantity | 25 |
| Barcode | 3472591156423 |
| Alternative Product SKU | D2,5/6,DPAL1 |
