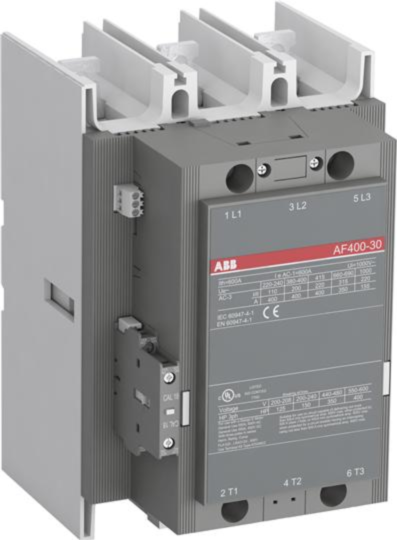

1SFL577001R7011 af400-30-11-70 200kw/400amp 100-250v 50/60hz dc ABB Contactor
MPN: 1SFL577001R7011
Alt. SKU: AF400-30-11-70
Special Price
£1,485.55
£1,237.96
Regular Price
£2,285.46
Why Choose the AF400-30-11-70 [1SFL577001R7011]
The AF400-30-11-70 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 200 kW / 400 V AC (AC-3) or 350 hp / 480 V UL and switching power circuits up to 600 A (AC-1) or 550 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Technical Specification
- Function: 3-pole contactor with pre-mounted auxiliary contacts and main circuit bars for motor control and power switching.
- Rated Operational Voltage: Main circuit up to 1000 V IEC / 600 V UL.
- Rated Operational Current: AC-1 up to 600 A; AC-3 up to 400 A (415 V) / 350 A (690 V); UL general use 550 A.
- Contact Configuration: 3 main contacts NO; 1 NO and 1 NC auxiliary contacts.
- Insulation Voltage: 1000 V IEC; 600 V UL.
- Impulse Withstand Voltage: 8 kV main circuit.
- Degree of Protection: Coil terminals IP20; main terminals IP00.
- Terminal Type and Size: Main bars 47 mm²; rigid aluminium cable up to 2x240 mm²; rigid copper cable up to 2x240 mm².
- Mechanical Durability: 3 million operations.
- Operating Frequency: Up to 300 cycles per hour (AC-1 and AC-3).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum motor control capacity of the AF400-30-11-70 contactor?
The AF400-30-11-70 can control motors up to 200 kW at 400 V AC (AC-3) or 350 hp at 480 V UL.
What is the rated operational current for AC-1 and AC-3?
The rated operational current is up to 600 A for AC-1 and 400 A for AC-3 at 415 V, or 350 A at 690 V.
What is the degree of protection for the AF400-30-11-70?
The degree of protection is IP20 for coil terminals and IP00 for main terminals.
What types of cables can be used with the main terminals?
The main terminals can accommodate rigid aluminium or copper cables up to 2x240 mm².
How many operations can the contactor endure mechanically?
The mechanical durability of the AF400-30-11-70 is rated for 3 million operations.
What is the impulse withstand voltage for the main circuit?
The impulse withstand voltage for the main circuit is 8 kV.
Is there any conformity information available for this product?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SFL577001R7011 |
|---|---|
| Manufacturer | ABB |
| Alternative Product SKU | AF400-30-11-70 |
| Packed Quantity | 1 |
| KW Rating | 200kW |
| Inbuilt Aux | 1 N/O 1 N/C |
| Barcode | 7320500217665 |
| Product Lead Time | Please contact us for a delivery time |
Write Your Own Review
ABB AF Contactor RangeABB contactor range can be used to control power circuits up to a level of 690 V AC and 220 V DC. The main benefit of ABB's range of AF products are that only a few coils are needed for different control voltages used in many applications without having to change the coil. |
