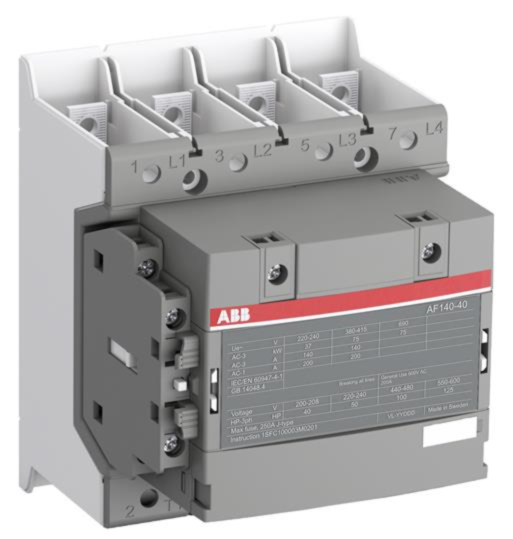

1SFL447102R1111 af140-40-11b-11 75kw/140 amp 24-60v 50/60hz-20-60v dc ABB Contactor
MPN: 1SFL447102R1111
Alt. SKU: AF140-40-11B-11
Special Price
£472.87
£394.06
Regular Price
£727.49
Why Choose the AF140-40-11B-11 [1SFL447102R1111]
The AF140-40-11B-11 is a 4 pole - 690 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 75 kW / 400 V AC (AC-3) / and switching power circuits up to 200 A (AC-1) or 175 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz and 20-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Technical Specification
- Function: 4-pole contactor for motor control and power switching up to 75 kW (400 V AC-3) / 200 A (AC-1).
- Rated Voltage: Main circuit 690 V IEC, 600 V UL/CSA.
- Current Rating: 200 A AC-1 at 40 °C, 175 A UL general use.
- Contact Configuration: 4 NO main contacts, 1 NO + 1 NC auxiliary contacts pre-mounted.
- Insulation & Impulse Withstand: Rated insulation voltage 1000 V IEC, impulse voltage 8 kV.
- Protection Rating: Auxiliary terminals IP40, coil terminals IP20, main terminals IP00.
- Terminal Type & Size: Main circuit bars; flexible 2 x 10–70 mm², rigid copper 2 x 10–95 mm².
- Durability: Mechanical durability rated for 5 million operations.
- Control Voltage Range: Wide range 24–60 V AC (50/60 Hz) and 20–60 V DC.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum motor control capacity of the AF140-40-11B-11 contactor?
The AF140-40-11B-11 contactor can control motors up to 75 kW at 400 V AC (AC-3).
What is the current rating for power circuits with this contactor?
The contactor can switch power circuits up to 200 A (AC-1) or 175 A for UL general use.
What is the control voltage range for the AF140-40-11B-11?
The control voltage range is 24–60 V AC (50/60 Hz) and 20–60 V DC.
What type of auxiliary contacts are included with the contactor?
The contactor comes with 1 NO + 1 NC auxiliary contacts pre-mounted.
What is the protection rating for the terminals of this contactor?
The auxiliary terminals have an IP40 rating, coil terminals are IP20, and main terminals are IP00.
How durable is the AF140-40-11B-11 contactor?
The mechanical durability is rated for 5 million operations.
Are there any specific standards or approvals for this product?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SFL447102R1111 |
|---|---|
| Manufacturer | ABB |
| Alternative Product SKU | AF140-40-11B-11 |
| KW Rating | 75kW |
| Inbuilt Aux | 1 N/O 1 N/C |
| Barcode | 7320500505267 |
Write Your Own Review
ABB AF Contactor RangeABB contactor range can be used to control power circuits up to a level of 690 V AC and 220 V DC. The main benefit of ABB's range of AF products are that only a few coils are needed for different control voltages used in many applications without having to change the coil. |
