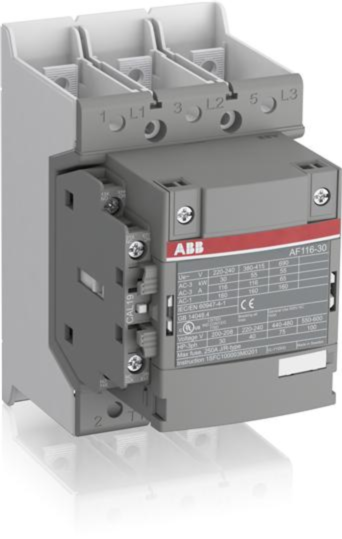

1SFL427002R1111 af116-30-11b-11 55kw/116 amp 24-60v 50/60hz-dc ABB Contactor
MPN: 1SFL427002R1111
Alt. SKU: AF116-30-11B-11
Special Price
£402.48
£335.40
Regular Price
£619.20
Why Choose the AF116-30-11B-11 [1SFL427002R1111]
The AF116-30-11B-11 is a 3 pole - 690 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 55 kW / 400 V AC (AC-3) or 75 hp / 480 V UL and switching power circuits up to 160 A (AC-1) or 160 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz and 20-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Technical Specification
- Function: 3-pole contactor for motor control up to 55 kW (400 V AC) / 75 hp (480 V UL) and power circuits up to 160 A AC-1 / UL general use.
- Main Contacts: 3 NO (normally open) contacts with 1 NO and 1 NC auxiliary contacts pre-mounted.
- Rated Operational Voltage: Main circuit 690 V IEC / 600 V UL.
- Rated Operational Current: AC-1 up to 160 A at 690 V; AC-3 motor duty current up to 116 A at 400 V.
- Rated Insulation and Impulse Withstand Voltage: 1000 V insulation (IEC), 8 kV impulse withstand voltage.
- Degree of Protection: Auxiliary terminals IP40, coil terminals IP20, main terminals IP00.
- Terminal Type and Capacity: Main circuit bars; flexible cables up to 70 mm², rigid copper cables up to 95 mm².
- Mechanical Durability: 5 million operations.
- Control Voltage Range: Wide range 24–60 V AC (50/60 Hz) and 20–60 V DC.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum motor control capacity of the AF116-30-11B-11 contactor?
The AF116-30-11B-11 contactor can control motors up to 55 kW at 400 V AC or 75 hp at 480 V UL.
What is the rated operational current for power circuits?
The contactor can handle power circuits up to 160 A for AC-1 and UL general use.
What is the control voltage range for the AF116-30-11B-11?
The control voltage range is 24–60 V AC (50/60 Hz) and 20–60 V DC.
What type of cables can be used with the main circuit bars?
Flexible cables up to 70 mm² and rigid copper cables up to 95 mm² can be used.
Is surge protection included in the AF116-30-11B-11 contactor?
Yes, the contactor features built-in surge protection.
What is the degree of protection for the terminals?
The degree of protection is IP40 for auxiliary terminals, IP20 for coil terminals, and IP00 for main terminals.
What is the mechanical durability of the contactor?
The mechanical durability is rated for 5 million operations.
| Manufacturer Part Number | 1SFL427002R1111 |
|---|---|
| Manufacturer | ABB |
| Alternative Product SKU | AF116-30-11B-11 |
| KW Rating | 55kW |
| Inbuilt Aux | 1 N/O 1 N/C |
| Barcode | 7320500476451 |
| Product Lead Time | Please contact us for a delivery time |
Write Your Own Review
ABB AF Contactor RangeABB contactor range can be used to control power circuits up to a level of 690 V AC and 220 V DC. The main benefit of ABB's range of AF products are that only a few coils are needed for different control voltages used in many applications without having to change the coil. |
