ABB XT5S 630 3 pole Standard MCCB Electronic trip unit LS/I Ii=630A
MPN: 1SDA100425R1
Alt. SKU: XT5S 630 Ekip Dip LS/I In=630 3p F F
Special Price
£1,607.45
£1,339.54
Regular Price
£2,473.00
This product replaces this item:
Why Choose the Moulded Case Circuit Breaker [1SDA100425R1]
The TMAX XT5S 630 fixed three-pole circuit breaker features front terminals for straightforward installation and maintenance. Equipped with a solid-state release, it offers precise and reliable protection in AC applications. Integrated with EKIP DIP LS/I R technology, this breaker ensures enhanced trip unit functionality and adjustable settings, making it suitable for demanding industrial and commercial electrical systems up to 630A.
Technical Specification
- Type: Fixed three-pole moulded case circuit breaker with solid-state release.
- Rated Current (In): 630 A.
- Rated Operational Voltage: 690 V AC.
- Number of Poles: 3P.
- Rated Insulation Voltage (Ui): 1000 V.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Breaking Capacity (Icu): Up to 85 kA at 220–240 V AC, down to 25 kA at 690 V AC.
- Terminal Type: Front terminals.
- Mechanical Durability: 20,000 cycles at 120 cycles/hour.
- Electrical Durability: 5,000 cycles at 60 cycles/hour.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX XT5S 630?
The rated current is 630 A.
What is the maximum operational voltage for this circuit breaker?
The maximum rated operational voltage is 690 V AC.
How many poles does the TMAX XT5S 630 have?
This circuit breaker has three poles (3P).
What is the breaking capacity of the TMAX XT5S 630?
The breaking capacity is up to 85 kA at 220–240 V AC and down to 25 kA at 690 V AC.
What type of terminals does the TMAX XT5S 630 use?
This circuit breaker features front terminals.
What is the mechanical durability of the TMAX XT5S 630?
The mechanical durability is rated for 20,000 cycles at 120 cycles/hour.
What standards and approvals does the TMAX XT5S 630 conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA100425R1 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 8056221005029 |

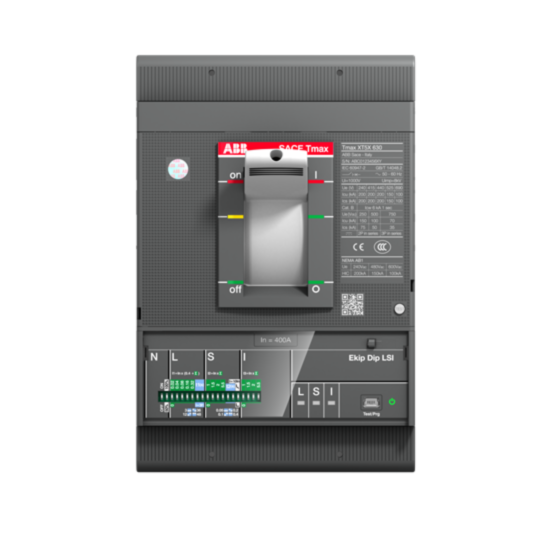

| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 630A |
| Alternative Product SKU | XT5S 630 Ekip Dip LS/I In=630 3p F F |
