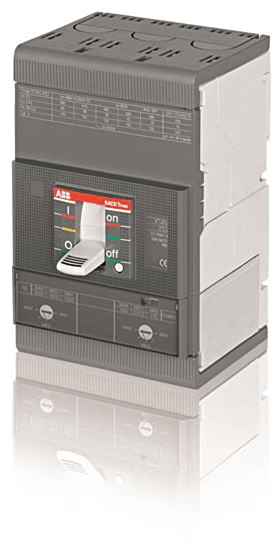

ABB XT4L 250 3 pole Low MCCB Electronic trip unit I Ii=250A
MPN: 1SDA068560R1
Alt. SKU: XT4L 250 Ekip I In=250A 3p F F
Special Price
£993.04
£827.53
Regular Price
£1,527.76
Why Choose the Moulded Case Circuit Breaker [1SDA068560R1]
The TMAX XT4L 250A fixed three-pole circuit breaker features front-access terminals for straightforward installation and maintenance. Equipped with a solid-state release, it ensures precise and reliable protection in AC applications. Designed for compatibility with EKIP-I R control units, this breaker offers robust performance and enhanced operational control for industrial and commercial electrical systems.
Technical Specification
- Function: Fixed three-pole moulded case circuit breaker with solid-state release (Ekip I EL).
- Rated Current: 250 A.
- Rated Operational Voltage: 690 V AC.
- Rated Insulation Voltage (Ui): 1000 V.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Short-Circuit Breaking Capacity (Ics/Icu): Up to 150 kA at 220-240 V AC, decreasing to 20 kA at 690 V AC.
- Number of Poles: 3-pole.
- Terminal Type and Connection: Front terminals with bolt connection, M8 recommended screwdriver size.
- Durability: Electrical 8,000 cycles, mechanical 25,000 cycles.
- Weight: 2.5 kg.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX XT4L?
The rated current is 250 A.
What is the maximum operational voltage for this circuit breaker?
The maximum rated operational voltage is 690 V AC.
How many poles does the TMAX XT4L circuit breaker have?
It has three poles.
What type of terminals does this circuit breaker use?
It features front terminals with bolt connection, recommended screwdriver size is M8.
What is the short-circuit breaking capacity at 690 V AC?
The short-circuit breaking capacity decreases to 20 kA at 690 V AC.
What is the durability rating for electrical and mechanical cycles?
It has an electrical durability of 8,000 cycles and mechanical durability of 25,000 cycles.
Are there any conformity standards for this product?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA068560R1 |
|---|---|
| Barcode | 8015644024666 |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 250A |
| Alternative Product SKU | XT4L 250 Ekip I In=250A 3p F F |
| Product Lead Time | Please contact us for a delivery time |
