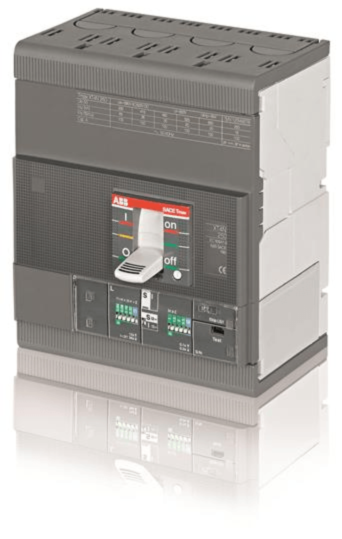

ABB XT4S 160 4 pole Standard MCCB Electronic trip unit I Ii=40A
MPN: 1SDA068496R1
Alt. SKU: XT4S 160 Ekip I In=40A 4p F F
Special Price
£964.88
£804.07
Regular Price
£1,484.44
Why Choose the Moulded Case Circuit Breaker [1SDA068496R1]
The TMAX XT4S 160 fixed four-pole circuit breaker features front-facing terminals and a solid-state release mechanism, designed for reliable protection in AC applications. Rated at 40 A, it integrates with the EKIP-I R system for enhanced monitoring and control, ensuring precise fault detection and operational safety in industrial and commercial electrical installations.
Technical Specification
- Function: Fixed 4-pole moulded case circuit breaker with solid-state release.
- Rated Current: 40 A.
- Rated Operational Voltage: 690 V AC.
- Impulse Withstand Voltage: 8 kV.
- Number of Poles: 4P.
- Short-Circuit Breaking Capacity: Up to 85 kA at 220-240 V AC; decreasing to 12 kA at 690 V AC.
- Terminal Type: Front bolt terminals, suitable for busbars 85–200 mm².
- Mechanical Durability: 25,000 operating cycles.
- Standards Compliance: IEC 60947-2.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX XT4S?
The rated current is 40 A.
What is the maximum operational voltage for this circuit breaker?
The maximum operational voltage is 690 V AC.
What is the short-circuit breaking capacity of the TMAX XT4S?
It has a short-circuit breaking capacity of up to 85 kA at 220-240 V AC, decreasing to 12 kA at 690 V AC.
What type of terminals does the circuit breaker have?
The circuit breaker features front bolt terminals suitable for busbars of 85–200 mm².
How many poles does the TMAX XT4S circuit breaker have?
This circuit breaker is a 4-pole device.
What is the mechanical durability of the TMAX XT4S?
The mechanical durability is rated for 25,000 operating cycles.
What standards does the TMAX XT4S comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA068496R1 |
|---|---|
| Barcode | 8015644024024 |
| Manufacturer | ABB |
| Number of Poles | 4 Pole |
| Amperage | 40A |
| Alternative Product SKU | XT4S 160 Ekip I In=40A 4p F F |
| Product Lead Time | Please contact us for a delivery time |
