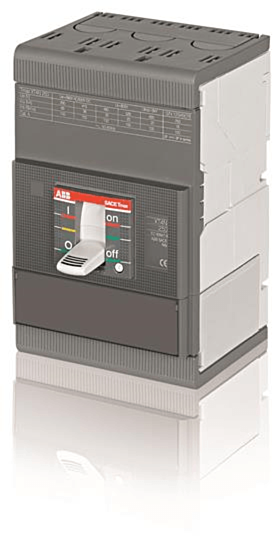

1sda068210r1 xt3d 250 3 pole abb mccb
MPN: 1SDA068210R1
Alt. SKU: XT3D 250 3p F F
Special Price
£337.62
£281.35
Regular Price
£519.41
Why Choose the Lasttrennschalter [1SDA068210R1]
The TMAX XT3D 250 fixed three-pole switch-disconnector features front-access terminals for straightforward installation and maintenance. Designed for reliable isolation and switching in industrial and commercial electrical systems, it ensures secure disconnection under load. Its robust construction and compatibility with standard panel mounting make it a dependable choice for controlling and protecting low-voltage circuits.
Technical Specification
- Function: Fixed three-pole switch-disconnector.
- Rated Operational Voltage: 690 V AC / 500 V DC.
- Rated Uninterrupted Current (Iu): 250 A.
- Number of Poles: 3P.
- Rated Insulation Voltage (Ui): 800 V.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Terminal Connection Type: Front terminals with bolt connection.
- Connecting Capacity Main Circuit: Busbar 85–192 mm².
- Mechanical Durability: 25,000 cycles.
- Standards Compliance: IEC 60947-2.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the TMAX XT3D 250 switch-disconnector?
The rated operational voltage is 690 V AC / 500 V DC.
What is the rated uninterrupted current for this switch-disconnector?
The rated uninterrupted current (Iu) is 250 A.
How many poles does the TMAX XT3D 250 have?
This switch-disconnector has three poles (3P).
What is the terminal connection type for this product?
The terminal connection type is front terminals with bolt connection.
What is the connecting capacity for the main circuit?
The connecting capacity for the main circuit is busbar 85–192 mm².
What is the mechanical durability of the TMAX XT3D 250?
The mechanical durability is rated for 25,000 cycles.
What standards does the TMAX XT3D 250 comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA068210R1 |
|---|---|
| Barcode | 8015644021061 |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 250A |
| Alternative Product SKU | XT3D 250 3p F F |
| Product Lead Time | Please contact us for a delivery time |
