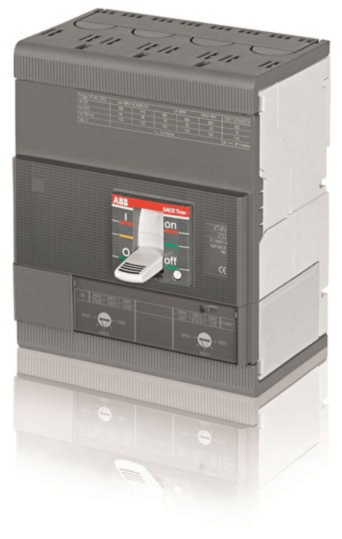

ABB XT4N 160 4 pole Normal MCCB Adjustable Thermal-Magnetic Release In=100A Ii=1000A
MPN: 1SDA068101R1
Alt. SKU: XT4N 160 TMA 100-1000 4p F F
Special Price
£713.04
£594.20
Regular Price
£1,096.99
Why Choose the Moulded Case Circuit Breaker [1SDA068101R1]
The TMAX XT4N 160 fixed four-pole circuit breaker features front terminals for straightforward installation and maintenance. Equipped with a thermomagnetic release (TMA R 100), it offers reliable protection with adjustable current settings ranging from 500 to 1000 A (I3). Designed for robust performance, this breaker is suitable for demanding industrial and commercial electrical distribution applications.
Technical Specification
- Function: Four-pole moulded case circuit breaker with thermomagnetic release TMA R.
- Rated Operational Voltage: 690 V AC, 750 V DC.
- Rated Current: 100 A (setting range 70–100 A), rated uninterrupted current 160 A.
- Short-Circuit Breaking Capacity: Up to 65 kA (AC), up to 36 kA (DC with 2 or 3 poles in series).
- Rated Insulation Voltage: 1000 V.
- Rated Impulse Withstand Voltage: 8 kV.
- Terminal Connection: Front terminals, bolt type, suitable for busbars 85–200 mm².
- Mechanical Durability: 25,000 cycles.
- Electrical Durability: 8,000 cycles at 120 cycles/hour.
- Tightening Torque: 8 N·m.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the C.BREAKER TMAX XT4N 160?
The rated operational voltage is 690 V AC and 750 V DC.
What is the rated current range for this circuit breaker?
The rated current is 100 A, with a setting range of 70–100 A.
What is the short-circuit breaking capacity of the TMAX XT4N 160?
The short-circuit breaking capacity is up to 65 kA for AC and up to 36 kA for DC with 2 or 3 poles in series.
What type of terminal connections does this circuit breaker use?
It features front terminals with a bolt type connection, suitable for busbars of 85–200 mm².
What is the mechanical durability of the C.BREAKER TMAX XT4N 160?
The mechanical durability is rated at 25,000 cycles.
How many electrical cycles can the circuit breaker handle?
It can handle 8,000 electrical cycles at a rate of 120 cycles per hour.
What is the tightening torque required for installation?
The required tightening torque is 8 N·m.
| Manufacturer Part Number | 1SDA068101R1 |
|---|---|
| Barcode | 8015644019945 |
| Manufacturer | ABB |
| Number of Poles | 4 Pole |
| Amperage | 100A |
| Alternative Product SKU | XT4N 160 TMA 100-1000 4p F F |
| Product Lead Time | Please contact us for a delivery time |
