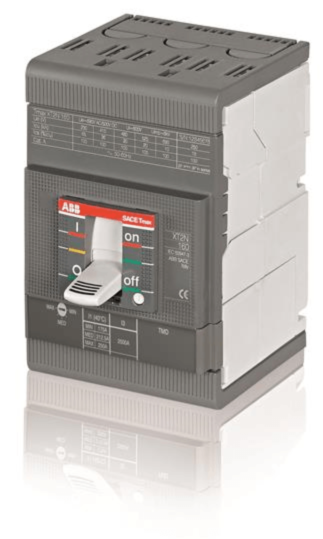

ABB XT2H 160 3 pole High MCCB Electronic trip unit LSI Ii=160A
MPN: 1SDA067871R1
Alt. SKU: XT2H 160 Ekip LSI In=160A 3p F F
Special Price
£1,078.24
£898.53
Regular Price
£1,658.83
Why Choose the Moulded Case Circuit Breaker [1SDA067871R1]
The TMAX XT2H 160A fixed three-pole circuit breaker features front terminals for straightforward installation and maintenance. Equipped with a solid-state release, it provides precise and reliable protection in AC applications. Integrated within the EKIP C DIP LSI range, this breaker offers long-time, short-circuit, and earth fault protection, ensuring comprehensive system safety and compatibility with industrial electrical networks.
Technical Specification
- Function: Moulded Case Circuit Breaker, 3-pole fixed with front terminals.
- Rated Current: 160 A.
- Rated Operational Voltage: 690 V AC.
- Impulse Withstand Voltage: 8 kV.
- Rated Insulation Voltage: 1000 V AC.
- Short-Circuit Breaking Capacity: Up to 100 kA (220-240 V AC), decreasing to 15 kA at 690 V AC.
- Terminal Connection: Front bolt terminals, suitable for busbar 32.5–100 mm².
- Mechanical Durability: 25,000 operations.
- Electrical Durability: 8,000 operations at 120 cycles per hour.
- Tightening Torque: 6 N·m.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX XT2H?
The rated current is 160 A.
What is the maximum operational voltage for this circuit breaker?
The rated operational voltage is 690 V AC.
What is the short-circuit breaking capacity of the TMAX XT2H?
It has a short-circuit breaking capacity of up to 100 kA at 220-240 V AC, decreasing to 15 kA at 690 V AC.
What type of terminals does the C.BREAKER TMAX XT2H have?
It features front bolt terminals suitable for busbar sizes of 32.5–100 mm².
What is the mechanical durability of this circuit breaker?
The mechanical durability is rated for 25,000 operations.
How many electrical operations can the TMAX XT2H handle?
It can handle 8,000 electrical operations at 120 cycles per hour.
What is the tightening torque for the terminals?
The tightening torque is 6 N·m.
| Manufacturer Part Number | 1SDA067871R1 |
|---|---|
| Barcode | 8015644017675 |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 160A |
| Alternative Product SKU | XT2H 160 Ekip LSI In=160A 3p F F |
| Product Lead Time | Please contact us for a delivery time |
