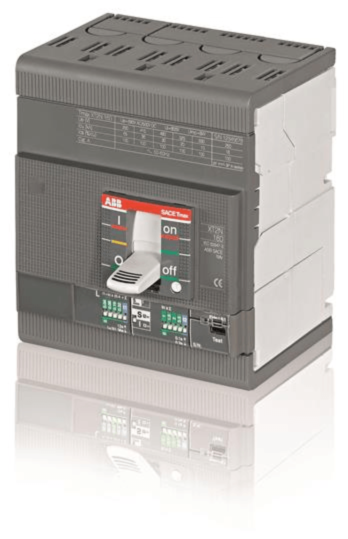

ABB XT2S 160 4 pole Standard MCCB Electronic trip unit LSIG Ii=63A
MPN: 1SDA067853R1
Alt. SKU: XT2S 160 Ekip LSIG In=63A 4p F F
Special Price
£1,464.11
£1,220.09
Regular Price
£2,252.47
Why Choose the Moulded Case Circuit Breaker [1SDA067853R1]
The TMAX XT2S 160 fixed four-pole circuit breaker features front-access terminals and a solid-state release mechanism, providing reliable protection in AC applications. Equipped with EKIP C DIP LSIG functionality, it offers precise long-time, short-time, instantaneous, and ground fault tripping characteristics. Rated at 63 A, this breaker ensures compatibility with a range of electrical distribution systems, delivering dependable performance for industrial and commercial installations.
Technical Specification
- Function: Moulded Case Circuit Breaker, 4-pole, fixed type with front terminals.
- Rated Current (In): 63 A.
- Rated Operational Voltage (Ur): 690 V AC.
- Rated Insulation Voltage (Ui): 1000 V AC.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Short-Circuit Breaking Capacity (Ics/Icu): Up to 85 kA (220-240 V AC), decreasing to 12 kA at 690 V AC.
- Terminal Connection: Front bolted terminals, suitable for busbars 32.5 to 100 mm².
- Mechanical Durability: 25,000 cycles at 240 cycles/hour.
- Electrical Durability: 8,000 cycles at 120 cycles/hour.
- Recommended Tightening Torque: 6 N·m.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current for the C.BREAKER TMAX XT2S 160?
The rated current is 63 A.
What is the maximum operational voltage for this circuit breaker?
The maximum rated operational voltage is 690 V AC.
What type of terminals does the C.BREAKER TMAX XT2S 160 have?
It features front bolted terminals suitable for busbars of 32.5 to 100 mm².
What is the short-circuit breaking capacity of this circuit breaker?
The short-circuit breaking capacity is up to 85 kA at 220-240 V AC, decreasing to 12 kA at 690 V AC.
How many mechanical cycles can this circuit breaker endure?
It has a mechanical durability of 25,000 cycles at 240 cycles/hour.
What is the recommended tightening torque for the terminals?
The recommended tightening torque is 6 N·m.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA067853R1 |
|---|---|
| Barcode | 8015644017491 |
| Manufacturer | ABB |
| Number of Poles | 4 Pole |
| Amperage | 63A |
| Alternative Product SKU | XT2S 160 Ekip LSIG In=63A 4p F F |
| Product Lead Time | Please contact us for a delivery time |
