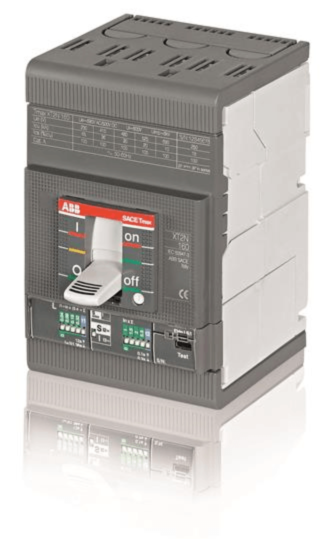

ABB XT2S 160 3 pole Standard MCCB Electronic trip unit I Ii=32A
MPN: 1SDA067830R1
Alt. SKU: XT2S 160 Ekip M-I In=32A 3p F F
Special Price
£659.75
£549.79
Regular Price
£1,015.00
Why Choose the Moulded Case Circuit Breaker [1SDA067830R1]
The TMAX XT2S 160 fixed three-pole circuit breaker features front terminals for straightforward installation and a solid-state release mechanism, ensuring precise and reliable protection. Designed for AC applications, this model includes the EKIP-M-I R electronic trip unit rated at 32 A, providing accurate overload and short-circuit detection. Its robust construction and advanced trip technology make it suitable for industrial and commercial electrical distribution systems requiring dependable circuit interruption and enhanced operational safety.
Technical Specification
- Function: Fixed three-pole moulded case circuit breaker with solid-state release (Ekip M-I).
- Rated Operational Voltage: 690 V AC.
- Rated Current: 32 A.
- Rated Ultimate Short-Circuit Breaking Capacity (Icu): Up to 85 kA at 230 V AC, decreasing to 12 kA at 690 V AC.
- Rated Insulation Voltage (Ui): 1000 V.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Terminal Connection Type: Front bolted terminals; connecting capacity 32.5 to 100 mm² busbar.
- Mechanical Durability: 25,000 cycles.
- Electrical Durability: 8,000 cycles at 120 operations per hour.
- Tightening Torque: 6 N·m (main circuit M6 screws).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the C.BREAKER TMAX XT2S 160?
The rated operational voltage is 690 V AC.
What is the rated current for this circuit breaker?
The rated current is 32 A.
What is the breaking capacity of the circuit breaker?
The rated ultimate short-circuit breaking capacity is up to 85 kA at 230 V AC, decreasing to 12 kA at 690 V AC.
What type of terminal connections does this circuit breaker have?
It features front bolted terminals with a connecting capacity of 32.5 to 100 mm² busbar.
What is the mechanical durability of the C.BREAKER TMAX XT2S 160?
The mechanical durability is rated at 25,000 cycles.
What is the tightening torque for the main circuit screws?
The tightening torque for the main circuit M6 screws is 6 N·m.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA067830R1 |
|---|---|
| Barcode | 8015644017262 |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 32A |
| Alternative Product SKU | XT2S 160 Ekip M-I In=32A 3p F F |
| Product Lead Time | Please contact us for a delivery time |
