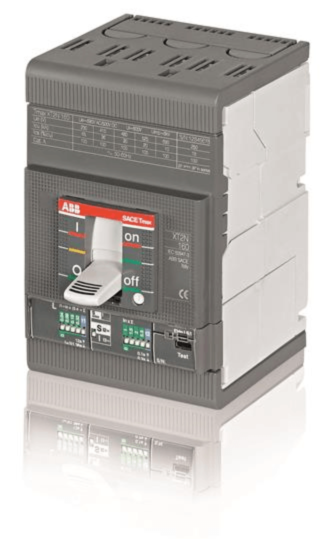

ABB XT2S 160 3 pole Standard MCCB Electronic trip unit LSIG Ii=160A
MPN: 1SDA067819R1
Alt. SKU: XT2S 160 Ekip LSIG In=160A 3p F F
Special Price
£1,405.52
£1,171.27
Regular Price
£2,162.34
Why Choose the Moulded Case Circuit Breaker [1SDA067819R1]
The C.BREAKER TMAX XT2S 160 is a fixed three-pole circuit breaker featuring front terminals for straightforward installation. It incorporates a solid-state release with EKIP C DIP LSIG protection, providing precise and reliable trip characteristics. Rated at 160 A, this breaker is designed for effective overload, short-circuit, and ground fault protection in AC distribution systems, ensuring compatibility and dependable performance in industrial and commercial applications.
Technical Specification
- Function: Fixed three-pole moulded case circuit breaker with solid-state release (Ekip C Dip LSIG).
- Rated Current: 160 A.
- Rated Operational Voltage: 690 V AC.
- Rated Insulation Voltage (Ui): 1000 V AC.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Short-Circuit Breaking Capacity: Up to 85 kA at 220-240 V AC, decreasing to 12 kA at 690 V AC.
- Terminal Type: Front bolt terminals suitable for busbars 32.5–100 mm².
- Mechanical Durability: 25,000 operating cycles.
- Electrical Durability: 8,000 operating cycles at 120 cycles per hour.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX XT2S?
The rated current is 160 A.
What is the maximum short-circuit breaking capacity?
The maximum short-circuit breaking capacity is up to 85 kA at 220-240 V AC, decreasing to 12 kA at 690 V AC.
What type of terminals does this circuit breaker have?
This circuit breaker features front bolt terminals suitable for busbars of 32.5–100 mm².
What is the rated operational voltage for this product?
The rated operational voltage is 690 V AC.
How many operating cycles can this circuit breaker endure?
The mechanical durability is 25,000 operating cycles, while the electrical durability is 8,000 operating cycles at 120 cycles per hour.
What type of release mechanism does the C.BREAKER TMAX XT2S use?
It uses a solid-state release mechanism (Ekip C Dip LSIG).
What are the insulation and impulse withstand voltage ratings?
The rated insulation voltage (Ui) is 1000 V AC, and the rated impulse withstand voltage (Uimp) is 8 kV.
| Manufacturer Part Number | 1SDA067819R1 |
|---|---|
| Barcode | 8015644017156 |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 160A |
| Alternative Product SKU | XT2S 160 Ekip LSIG In=160A 3p F F |
| Product Lead Time | Please contact us for a delivery time |
