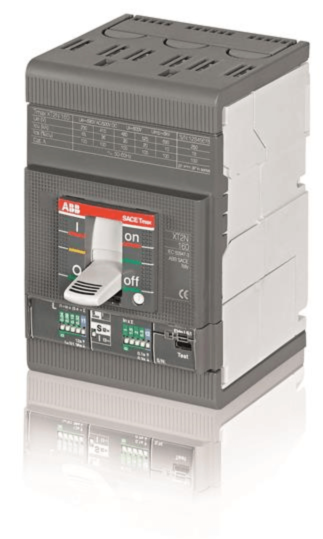

ABB XT2S 160 3 pole Standard MCCB Electronic trip unit LSI Ii=100A
MPN: 1SDA067813R1
Alt. SKU: XT2S 160 Ekip LSI In=100A 3p F F
Special Price
£1,058.08
£881.73
Regular Price
£1,627.81
Why Choose the Moulded Case Circuit Breaker [1SDA067813R1]
The C.BREAKER TMAX XT2S 160 is a fixed, three-pole circuit breaker featuring front terminals for straightforward installation. It incorporates a solid-state release with EKIP C DIP LSI protection, providing adjustable long-time, short-time, and instantaneous trip settings. Rated at 100 A, this breaker ensures reliable overload and short-circuit protection in AC systems, making it suitable for a wide range of industrial and commercial applications.
Technical Specification
- Function: Fixed three-pole moulded case circuit breaker with solid-state release (Ekip C Dip LSI).
- Rated Current: 100 A.
- Rated Operational Voltage: 690 V AC.
- Number of Poles: 3 poles (3P).
- Rated Impulse Withstand Voltage: 8 kV.
- Rated Insulation Voltage: 1000 V AC.
- Short-Circuit Breaking Capacity: Up to 85 kA (220-240 V AC), down to 12 kA (690 V AC).
- Terminal Type and Size: Front bolt terminals, suitable for busbars 32.5 to 100 mm².
- Mechanical Durability: 25,000 operating cycles at 240 cycles per hour.
- Tightening Torque: 6 N·m for main circuit terminals.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX XT2S?
The rated current is 100 A.
What is the maximum operational voltage for this circuit breaker?
The maximum rated operational voltage is 690 V AC.
How many poles does the TMAX XT2S have?
This circuit breaker has 3 poles (three-pole).
What is the short-circuit breaking capacity of this device?
The short-circuit breaking capacity is up to 85 kA at 220-240 V AC and down to 12 kA at 690 V AC.
What type of terminals does the TMAX XT2S use?
It features front bolt terminals suitable for busbars sized 32.5 to 100 mm².
What is the mechanical durability of this circuit breaker?
The mechanical durability is rated for 25,000 operating cycles at 240 cycles per hour.
What is the tightening torque for the main circuit terminals?
The tightening torque required is 6 N·m for the main circuit terminals.
| Manufacturer Part Number | 1SDA067813R1 |
|---|---|
| Barcode | 8015644017095 |
| HS Code | 85362090 |
| Country of Manufacture | Italy |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 100A |
| Alternative Product SKU | XT2S 160 Ekip LSI In=100A 3p F F |
