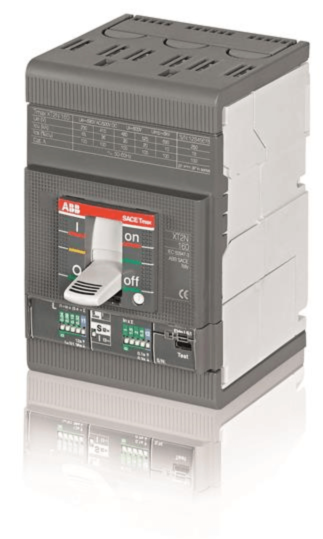

ABB XT2S 160 3 pole Standard MCCB Electronic trip unit I Ii=10A
MPN: 1SDA067805R1
Alt. SKU: XT2S 160 Ekip M Dip I In=10A 3p F F
Special Price
£625.18
£520.98
Regular Price
£961.81
Why Choose the Moulded Case Circuit Breaker [1SDA067805R1]
The TMAX XT2S 160 fixed three-pole circuit breaker features front terminals for straightforward installation and maintenance. Equipped with a solid-state release, it provides precise trip protection in AC applications. Integrated with the EKIP M DIP I R 10 A electronic trip unit, this breaker ensures reliable performance and enhanced selectivity, making it suitable for industrial and commercial electrical distribution systems.
Technical Specification
- Product Type: Fixed three-pole moulded case circuit breaker with solid-state release.
- Rated Operational Voltage: 690 V AC.
- Rated Current: 10 A.
- Short-Circuit Breaking Capacity (Ics/Icu): 85 kA at 220-240 V AC; 50 kA at 380-440 V AC; 12 kA at 690 V AC.
- Rated Insulation Voltage (Ui): 1000 V.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Number of Poles: 3 poles.
- Terminal Type and Connection: Front terminals, bolt type, suitable for busbar 32.5 to 100 mm², tightening torque 6 N·m.
- Mechanical Durability: 25,000 cycles at 240 operations per hour.
- Electrical Durability: 8,000 cycles at 120 operations per hour.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the C.BREAKER TMAX XT2S 160?
The rated operational voltage is 690 V AC.
What is the short-circuit breaking capacity of this circuit breaker?
The short-circuit breaking capacity is 85 kA at 220-240 V AC, 50 kA at 380-440 V AC, and 12 kA at 690 V AC.
What is the rated current for the TMAX XT2S 160?
The rated current is 10 A.
What type of terminals does the TMAX XT2S 160 have?
It has front terminals of the bolt type, suitable for busbar sizes from 32.5 to 100 mm².
What is the tightening torque for the terminals?
The tightening torque is 6 N·m.
How many mechanical and electrical cycles can the breaker endure?
The mechanical durability is 25,000 cycles at 240 operations per hour, and the electrical durability is 8,000 cycles at 120 operations per hour.
What are the insulation and impulse withstand voltage ratings?
The rated insulation voltage is 1000 V, and the rated impulse withstand voltage is 8 kV.
| Manufacturer Part Number | 1SDA067805R1 |
|---|---|
| Barcode | 8015644017019 |
| HS Code | 85362090 |
| Country of Manufacture | Italy |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 10A |
| Alternative Product SKU | XT2S 160 Ekip M Dip I In=10A 3p F F |
