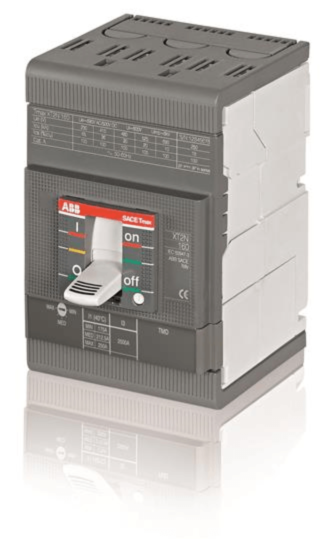

ABB XT2S 160 3 pole Standard MCCB Adjustable Magnetic Release In=80A Im=480 - 1120A
MPN: 1SDA067768R1
Alt. SKU: XT2S 160 MA 80 Im=480...1120 3p F F
Special Price
£372.05
£310.04
Regular Price
£572.39
Why Choose the Moulded Case Circuit Breaker [1SDA067768R1]
The TMAX XT2S 160 fixed three-pole circuit breaker features front terminals for straightforward installation and a magnetic release mechanism. It offers a rated operational current (Iu) of 80 A and adjustable trip settings (I3) ranging from 480 A to 1120 A, ensuring reliable protection and compatibility in industrial and commercial electrical systems.
Technical Specification
- Function: Fixed three-pole moulded case circuit breaker with magnetic release MA.
- Rated Current (Iₙ): 80 A, Rated Uninterrupted Current (Iᵤ): 160 A.
- Voltage Ratings: 690 V AC, 500 V DC.
- Short-Circuit Breaking Capacity (I????ₛ): Up to 85 kA at 220-240 V AC; down to 12 kA at 690 V AC; 50 kA for DC (250 V and 500 V with poles in series).
- Number of Poles: 3-pole (3P).
- Insulation Voltage (Uᵢ): 1000 V.
- Impulse Withstand Voltage (Uimp): 8 kV.
- Terminal Type & Size: Front terminals with bolt connection, suitable for busbars 32.5 to 100 mm², tightening torque 6 N·m.
- Mechanical Durability: 25,000 operations at 240 cycles/hour.
- Standards: IEC 60947-2.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX XT2S?
The rated current (Iₙ) is 80 A.
What is the short-circuit breaking capacity of this circuit breaker?
It has a short-circuit breaking capacity of up to 85 kA at 220-240 V AC, down to 12 kA at 690 V AC, and 50 kA for DC.
What type of terminals does the C.BREAKER TMAX XT2S have?
It features front terminals with bolt connection, suitable for busbars ranging from 32.5 to 100 mm².
What is the insulation voltage for this circuit breaker?
The insulation voltage (Uᵢ) is 1000 V.
What is the mechanical durability of the C.BREAKER TMAX XT2S?
It has a mechanical durability of 25,000 operations at 240 cycles/hour.
What voltage ratings does the C.BREAKER TMAX XT2S support?
It supports voltage ratings of 690 V AC and 500 V DC.
Is the C.BREAKER TMAX XT2S compliant with any standards?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA067768R1 |
|---|---|
| Barcode | 8015644016647 |
| HS Code | 85362090 |
| Country of Manufacture | Italy |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 80A |
| Alternative Product SKU | XT2S 160 MA 80 Im=480...1120 3p F F |
