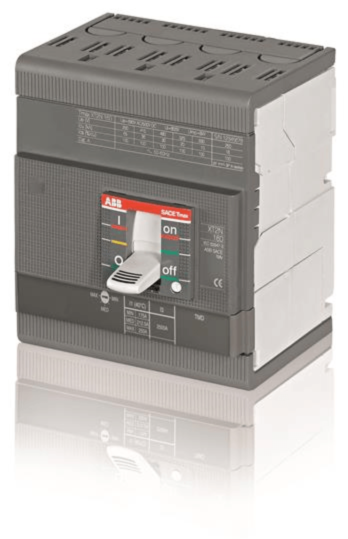

ABB XT2S 160 4 pole Standard MCCB Adjustable Thermal/Fixed Magnetic Release In=63A Ii=200A
MPN: 1SDA067755R1
Alt. SKU: XT2S 160 TMG 63-200 4p F F
Special Price
£378.54
£315.45
Regular Price
£582.37
Why Choose the Moulded Case Circuit Breaker [1SDA067755R1]
The C.BREAKER TMGX XT2S 160 is a fixed four-pole circuit breaker featuring front-access terminals for straightforward installation and maintenance. It incorporates a thermomagnetic release (TMG R) with adjustable current ratings from 63 to 200 A, providing reliable protection against overloads and short circuits. Designed for industrial and commercial applications, this breaker ensures compatibility with standard switchgear systems and offers robust performance in demanding electrical environments.
Technical Specification
- Function: Four-pole moulded case circuit breaker with thermomagnetic release.
- Rated Current: 63 A (setting range 44.1–63 A).
- Rated Operational Voltage: 690 V AC / 500 V DC.
- Rated Insulation Voltage: 1000 V.
- Rated Impulse Withstand Voltage: 8 kV.
- Contact Configuration: Fixed four-pole with front terminals, bolt type.
- Connecting Capacity: Busbar 32.5 to 100 mm².
- Short-Circuit Breaking Capacity: Up to 85 kA AC (220-240 V) and 50 kA DC with series poles.
- Mechanical Durability: 25,000 cycles.
- Tightening Torque: 6 N·m (main circuit terminal).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMGX XT2S 160?
The rated current is 63 A, with a setting range of 44.1–63 A.
What is the maximum operational voltage for this circuit breaker?
The rated operational voltage is 690 V AC and 500 V DC.
What is the connecting capacity for busbars?
The connecting capacity for busbars ranges from 32.5 to 100 mm².
What is the short-circuit breaking capacity?
The short-circuit breaking capacity is up to 85 kA AC (220-240 V) and 50 kA DC with series poles.
How many mechanical cycles can this circuit breaker endure?
The mechanical durability is rated for 25,000 cycles.
What type of terminals does the C.BREAKER TMGX XT2S 160 have?
It features fixed four-pole terminals with front access, using a bolt type connection.
What is the tightening torque for the main circuit terminal?
The tightening torque for the main circuit terminal is 6 N·m.
| Manufacturer Part Number | 1SDA067755R1 |
|---|---|
| Barcode | 8015644016517 |
| HS Code | 85362090 |
| Country of Manufacture | Italy |
| Manufacturer | ABB |
| Number of Poles | 4 Pole |
| Amperage | 63A |
| Alternative Product SKU | XT2S 160 TMG 63-200 4p F F |
